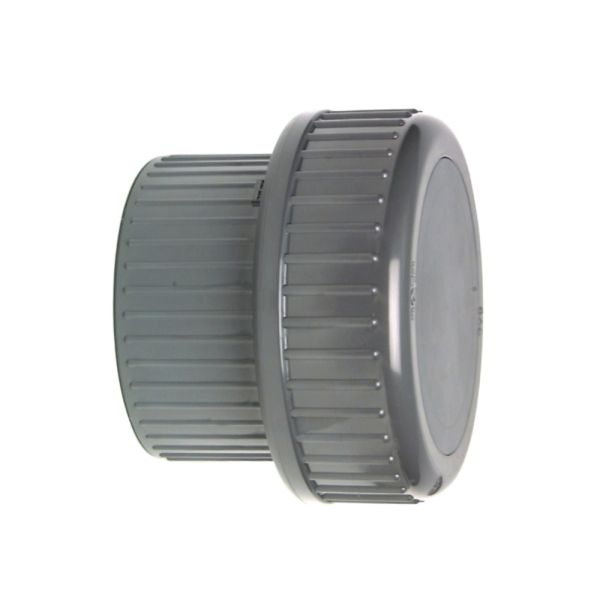

Georg Fischer PVCu Metric Blanking Union Plain FPM
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 10mm - 110mm
- FPM O-Ring
- Dimension: DIN 8061/62
| Product Code | d (mm) | D (mm) | z2 (mm) | L1 (mm) | L2 (mm) | G/Tr (inch) | Weight (kg) |
| 393 | 10 | 31 | 9 | 10 | 22 | 5/8 | 0.020 |
| 393 | 12 | 31 | 9 | 15 | 22 | 5/8 | 0.020 |
| 393 | 16 | 35 | 10 | 10 | 24 | 3/4 | 0.026 |
| 393 | 20 | 43 | 10 | 11 | 26 | 1 | 0.041 |
| 393 | 25 | 51 | 10 | 11 | 29 | 1 1/4 | 0.068 |
| 393 | 32 | 58 | 10 | 12 | 33 | 1 1/2 | 0.095 |
| 393 | 40 | 72 | 12 | 13 | 39 | 2 | 0.159 |
| 393 | 50 | 83 | 14 | 16 | 46 | 2 1/4 | 0.227 |
| 393 | 63 | 100 | 18 | 18 | 58 | 2 3/4 | 0.405 |
| 393 | 75 | 135 | 18 | 22 | 62 | Tr108x5 | 0.693 |
| 393 | 90 | 158 | 18 | 24 | 69 | Tr128x5 | 1.022 |
| 393 | 110 | 188 | 11 | 26 | 72 | Tr154x5 | 1.573 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
