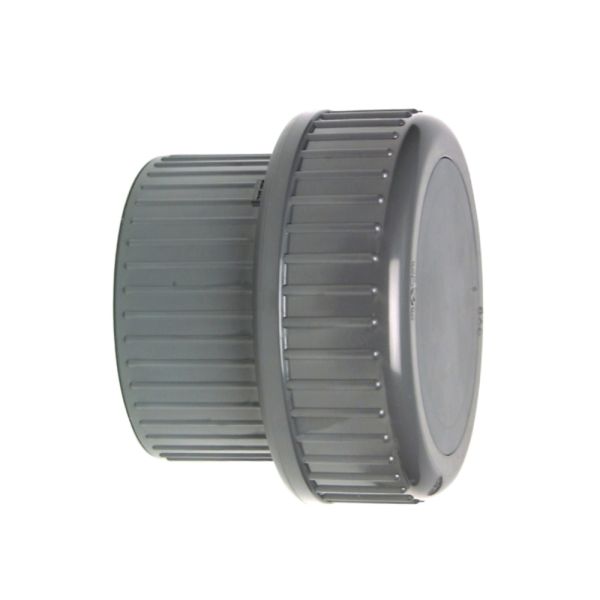

Georg Fischer PVCu Metric Blanking Union Plain EPDM

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Sizes available: 10mm - 110mm
  • EPDM O-Ring
  • Dimension: DIN 8061/62

GF-blanking-union-diagram

Product Code d (mm) D (mm) z2 (mm) L1 (mm) L2 (mm) G/Tr (inch) Weight (kg)
393 10 31 9 10 22 5/8 0.020
393 12 31 9 15 22 5/8 0.020
393 16 35 10 10 24 3/4 0.026
393 20 43 10 11 26 1 0.041
393 25 51 10 11 29 1 1/4 0.068
393 32 58 10 12 33 1 1/2 0.095
393 40 72 12 13 39 2 0.159
393 50 83 14 16 46 2 1/4 0.227
393 63 100 18 18 58 2 3/4 0.392
393 75 135 18 22 62 Tr108x5 0.679
393 90 158 18 24 69 Tr128x5 1.022
393 110 188 11 26 72 Tr154x5 1.556



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393380GF PVCu Blanking Union Plain EPDM 10mm £37.73 37%
£23.77
393381GF PVCu Blanking Union Plain EPDM 12mm £37.73 37%
£23.77
393382GF PVCu Blanking Union Plain EPDM 16mm £38.18 37%
£24.05
393383GF PVCu Blanking Union Plain EPDM 20mm £39.03 37%
£24.59
393384GF PVCu Blanking Union Plain EPDM 25mm £42.89 37%
£27.02
393385GF PVCu Blanking Union Plain EPDM 32mm £53.42 37%
£33.65
393386GF PVCu Blanking Union Plain EPDM 40mm £61.51 37%
£38.75
393387GF PVCu Blanking Union Plain EPDM 50mm £86.11 37%
£54.25
393388GF PVCu Blanking Union Plain EPDM 63mm £106.49 37%
£67.09
393389GF PVCu Blanking Union Plain EPDM 75mm £229.49 37%
£144.58
393390GF PVCu Blanking Union Plain EPDM 90mm £261.66 37%
£164.85
393391GF PVCu Blanking Union Plain EPDM 110mm £316.66 37%
£199.50
