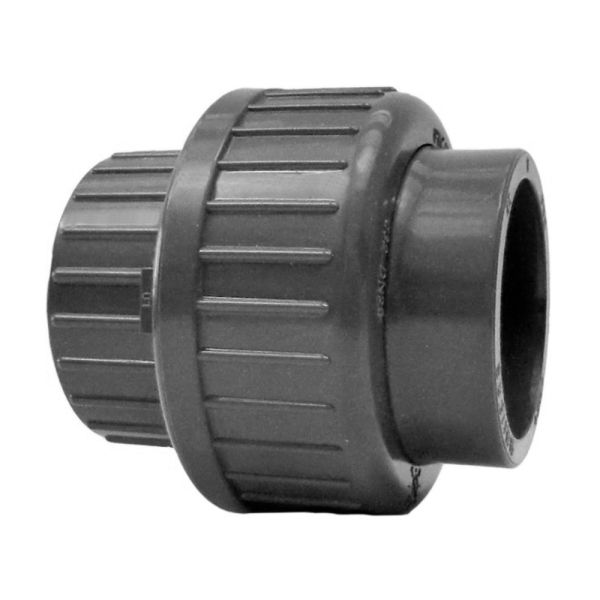

Georg Fischer PVCu Adaptor Union Plain Metric x Inch

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Sizes available: 16mm x 3/8" - 63mm x 2"
  • EPDM O-Ring
  • Dimension: DIN 8061/62

GF-union-diagram

Product Code d (mm) d1 (inch) z1 (mm) z2 (mm) D (mm) L1 (mm) L2 (mm) G (inch) Weight (kg)
393404 16 3/8 3 8 35 17 24 3/4 0.025
393405 20 1/2 3 9 43 19 26 1 0.040
393406 25 3/4 3 9 51 22 29 1 1/4 0.065
393407 32 1 3 9 58 25 33 1 1/2 0.090
393408 40 1 1/4 3 10 72 29 39 2 0.155
393409 50 1 1/2 3 10 83 34 46 2 1/4 0.200
393410 63 2 3 10 100 41 58 2 3/4 0.341



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393404GF PVCu Union Plain 16mm x 3/8" £18.88 37%
£11.89
393405GF PVCu Union Plain 20mm x 1/2" £21.97 37%
£13.84
393406GF PVCu Union Plain 25mm x 3/4" £25.60 37%
£16.13
393407GF PVCu Union Plain 32mm x 1" £32.70 37%
£20.60
393408GF PVCu Union Plain 40mm x 1 1/4" £41.07 37%
£25.87
393409GF PVCu Union Plain 50mm x 1 1/2" £56.77 37%
£35.77
393410GF PVCu Union Plain 63mm x 2" £73.86 37%
£46.53
