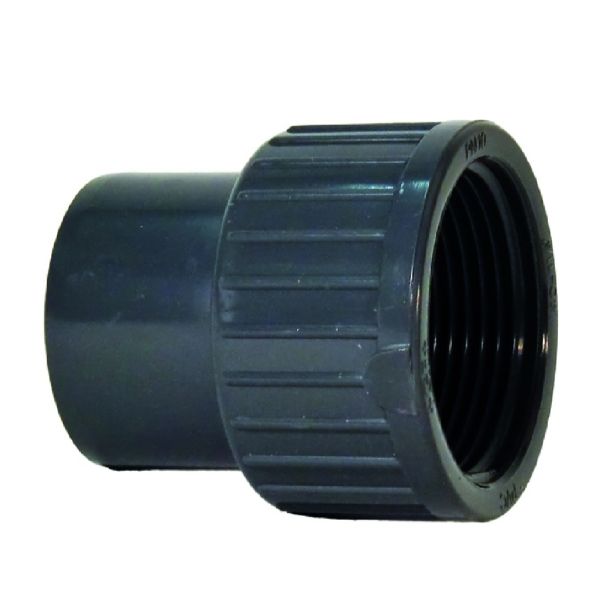

Georg Fischer PVCu Metric Spigot Adaptor Plain M x Thread F

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar
  • Sizes available: 20mm - 63mm
  • Dimension: DIN 8061/62
  • Spigot end x parallel female thread
  • Connects plastic thread only

GF-plain-x-thread-adaptor-socket-diagram

Product Code d (mm) Rp (inch) z (mm) D (mm) L (mm) Weight (kg)
393207 20 1/2 22 28 37 0.012
393208 25 3/4 25 34 41 0.018
393209 32 1 29 42 48 0.035
393210 40 1 1/4 34 52 56 0.063
393211 50 1 1/2 40 62 61 0.097
393212 63 2 49 77 74 0.170



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393207GF PVCu Adaptor Plain M x Thread F 20mm x 1/2" £8.18 37%
£5.15
393208GF PVCu Adaptor Plain M x Thread F 25mm x 3/4" £9.92 37%
£6.25
393209GF PVCu Adaptor Plain M x Thread F 32mm x 1" £14.25 37%
£8.98
393210GF PVCu Adaptor Plain M x Thread F 40mm x 1 1/4" £18.45 37%
£11.62
393211GF PVCu Adaptor Plain M x Thread F 50mm x 1 1/2" £23.79 37%
£14.99
393212GF PVCu Adaptor Plain M x Thread F 63mm x 2" £34.05 37%
£21.45
