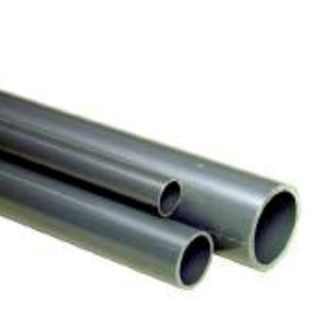

PVC-C Pipe - PN16
Useful Information
PVC-C is manufactured from Chlorinated Polyvinylchloride, which offers excellent resistance against chemicals such as mineral acids, bases and salt solutions.
This Georg Fischer PVC-C pipe has a pressure rating of up to PN16 at an operating temperature of 20°C. Pressure ratings will be reduced with higher temperatures and aggressive flow media.
| Pressure Rating | 16 bar @ 20°C |
| Temperature Range | 0°C to 80°C |
| Length | 5-meters |
| Size Range | 75mm to 225mm Ø |
| Colour | Grey (RAL 7038) |
| Product Code | Diameter (mm) | Wall Thickness (mm) | Length (m) | Weight (kg) |
| 398503 | 32 | 2.4 | 5 | 1.895 |
| 398504 | 40 | 3.0 | 5 | 2.91 |
| 398505 | 50 | 3.7 | 5 | 4.48 |
| 398506 | 63 | 4.7 | 5 | 7.15 |
| 398507 | 75 | 5.6 | 5 | 10.1 |
| 398508 | 90 | 6.7 | 5 | 14.4 |
| 398509 | 110 | 8.2 | 5 | 21.35 |
| 398510 | 160 | 11.9 | 5 | 44.9 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
