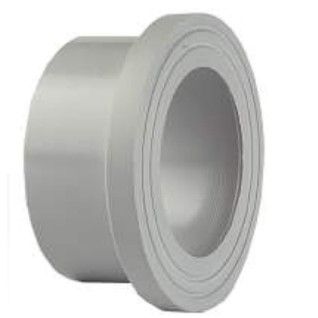

Serrated Flange Adaptor
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
20 - 160mm = 16 Bar |
| Size Range | 20 - 225mm |
| Product Code | d (mm) | D (mm) | d1 (mm) | D1 (mm) | z (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 398827 | 20 | 27 | 16 | 34 | 3 | 21 | 6 | 0.011 |
| 398828 | 25 | 33 | 21 | 41 | 3 | 24 | 7 | 0.018 |
| 398829 | 32 | 41 | 28 | 50 | 3 | 27 | 7 | 0.027 |
| 398830 | 40 | 50 | 36 | 61 | 3 | 30 | 8 | 0.032 |
| 398831 | 50 | 61 | 45 | 73 | 3 | 34 | 8 | 0.054 |
| 398832 | 63 | 76 | 57 | 90 | 3 | 41 | 9 | 0.097 |
| 398833 | 75 | 91 | 69 | 106 | 3 | 47 | 10 | 0.168 |
| 398834 | 90 | 108 | 82 | 125 | 5 | 56 | 11 | 0.265 |
| 398835 | 110 | 131 | 102 | 150 | 5 | 66 | 12 | 0.441 |
| 398836 | 160 | 188 | 152 | 213 | 5 | 91 | 16 | 1.139 |
| 398837 | 225 | 248 | 217 | 274 | 6 | 125 | 25 | 1.860 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
