Union Plain x Malleable Iron M Thread
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

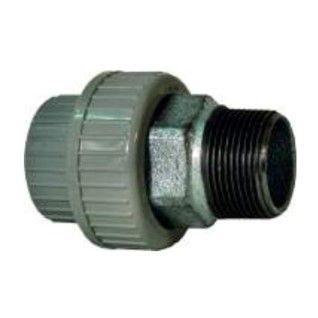

These Unions have a plain PVC-C metric bush and nut one end and a malleable iron male thread R at the other end. They also contain EPDM O-ring gasket seals.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 20mm x 1/2" - 63mm x 2" |
| Product Code | d (mm) | R (inch) | z (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | s (mm) | G (inch) | Weight (kg) |
| 398765 | 20 | 1/2 | 50 | 43 | 66 | 40 | 26 | 25 | 1 | 0.114 |
| 398766 | 25 | 3/4 | 53 | 51 | 72 | 43 | 29 | 31 | 1 1/4 | 0.165 |
| 398767 | 32 | 1 | 58 | 58 | 80 | 48 | 33 | 38 | 1 1/2 | 0.205 |
| 398768 | 40 | 1 1/4 | 69 | 72 | 95 | 57 | 39 | 48 | 2 | 0.403 |
| 398769 | 50 | 1 1/2 | 73 | 83 | 104 | 59 | 46 | 54 | 2 1/4 | 0.539 |
| 398770 | 63 | 2 | 80 | 100 | 118 | 62 | 58 | 67 | 2 3/4 | 0.787 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
