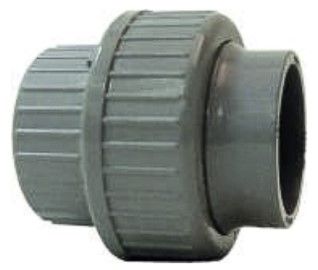

Union Plain FPM

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

These Unions come with FPM O-ring gaskets.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	16 - 63mm = 16 Bar 75 - 110mm = 10 Bar
Size Range	16mm - 110mm

GF-union-diagram

Product Code	d (mm)	z1 (mm)	z2 (mm)	D (mm)	L1 (mm)	L2 (mm)	G/Tr (inch)	Weight (kg)
398679	16	3	8	35	19	24	3/4	0.027
398680	20	3	9	43	21	26	1	0.044
398681	25	3	9	53	24	29	1 1/4	0.072
398682	32	3	9	60	27	33	1 1/2	0.098
398683	40	3	10	74	32	39	2	0.167
398684	50	3	10	83	33	46	2 1/4	0.098
398685	63	3	10	103	40	58	2 3/4	0.362
398686	75	3	18	135	47	62	Tr108x5	0.670
398687	90	5	18	158	56	69	Tr128x5	1.008
398688	110	5	11	188	66	72	Tr154x6	1.523

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398679	GF PVC-C Union Plain FPM 16mm	£35.29	15%	£30.00
398680	GF PVC-C Union Plain FPM 20mm	£44.12	15%	£37.50
398681	GF PVC-C Union Plain FPM 25mm	£52.00	15%	£44.20
398682	GF PVC-C Union Plain FPM 32mm	£64.69	15%	£54.99
398683	GF PVC-C Union Plain FPM 40mm	£92.78	15%	£78.86
398684	GF PVC-C Union Plain FPM 50mm	£119.44	15%	£101.52
398685	GF PVC-C Union Plain FPM 63mm	£183.34	15%	£155.84
398686	GF PVC-C Union Plain FPM 75mm	£379.80	15%	£322.83
398687	GF PVC-C Union Plain FPM 90mm	£341.11	15%	£289.94
398688	GF PVC-C Union Plain FPM 110mm	£612.35	15%	£520.50
