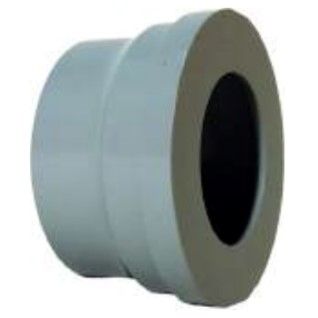

Union End Plain

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

These plain union ends are designed for use with standard PVC-C unions.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	16mm - 110mm

GF-union-plain-end-diagram

Product Code	d (mm)	z (mm)	D (mm)	D1 (mm)	L (mm)	Weight (kg)
398783	16	3	24	22	19	0.005
398784	20	4	30	28	21	0.010
398785	25	3	39	36	24	0.018
398786	32	3	44	41	27	0.023
398787	40	3	57	53	31	0.062
398788	50	3	63	59	34	0.064
398789	63	3	78	74	41	0.120
398790	75	3	101	91	47	0.157
398791	90	5	121	108	56	0.260
398792	110	5	146	131	66	0.418

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398783	GF PVC-C Union End Plain 16mm	£5.61	15%	£4.77
398784	GF PVC-C Union End Plain 20mm	£5.61	15%	£4.77
398785	GF PVC-C Union End Plain 25mm	£6.40	15%	£5.44
398786	GF PVC-C Union End Plain 32mm	£8.87	15%	£7.54
398787	GF PVC-C Union End Plain 40mm	£12.02	15%	£10.22
398788	GF PVC-C Union End Plain 50mm	£22.46	15%	£19.09
398789	GF PVC-C Union End Plain 63mm	£32.98	15%	£28.03
398790	GF PVC-C Union End Plain 75mm	£44.66	15%	£37.96
398791	GF PVC-C Union End Plain 90mm	£51.33	15%	£43.63
398792	GF PVC-C Union End Plain 110mm	£64.89	15%	£55.16
