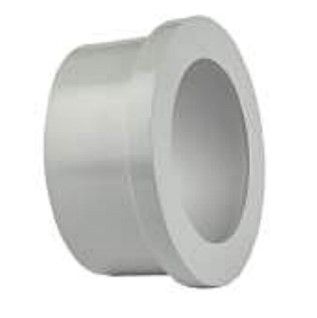

Union End ASTM
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
These plain union ends are designed for use with standard PVC-CÂ unions.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 3/8" - 2" |
| Product Code | d (inch) | z (mm) | D (mm) | D1 (mm) | L (mm) | Weight (kg) |
| 398793 | 3/8 | 3 | 24 | 22 | 22 | 0.006 |
| 398794 | 1/2 | 3 | 30 | 28 | 25 | 0.013 |
| 398795 | 3/4 | 3 | 39 | 36 | 28 | 0.016 |
| 398796 | 1 | 3 | 45 | 42 | 32 | 0.025 |
| 398797 | 1 1/4 | 3 | 57 | 53 | 35 | 0.040 |
| 398798 | 1 1/2 | 3 | 63 | 59 | 38 | 0.049 |
| 398799 | 2 | 3 | 78 | 74 | 41 | 0.080 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
