Union Bush Thread
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

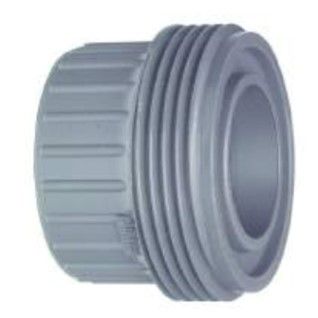

These female threaded union bushes are designed for connection to standard PVC-C unions and contain a groove in the jointing face for an O-ring.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
10 Bar |
| Size Range | 3/8" - 2" |
| Product Code | d (RP inch) | D (mm) | z (mm) | L (mm) | G/Tr (inch) | Weight (kg) |
| 398810 | 3/8 | 24 | 13 | 24 | 3/4 | 0.010 |
| 398811 | 1/2 | 29 | 13 | 26 | 1 | 0.015 |
| 398812 | 3/4 | 34 | 14 | 29 | 1 1/4 | 0.024 |
| 398813 | 1 | 42 | 15 | 32 | 1 1/2 | 0.039 |
| 398814 | 1 1/4 | 53 | 19 | 38 | 2 | 0.069 |
| 398815 | 1 1/2 | 63 | 26 | 45 | 2 1/4 | 0.092 |
| 398816 | 2 | 78 | 33 | 56 | 2 3/4 | 0.114 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
