Union ASTM FPM Plain x Inch

Skip to the beginning of the images gallery

Useful Information

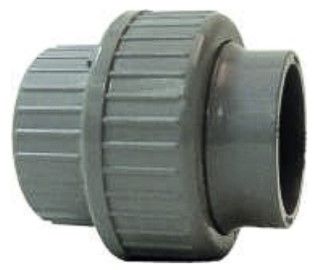

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

These Unions are plain x ASTM inch and come with FPM O-ring gaskets.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	10 Bar
Size Range	16mm x 3/8" - 63mm x 2"

GF-union-diagram

Product Code	d (mm)	d1 (inch)	z1 (mm)	z2 (mm)	D (mm)	L1 (mm)	L2 (mm)	G (inch)	Weight (kg)
398710	16	3/8	4	10	35	17	24	3/4	0.022
398711	20	1/2	2	10	43	19	26	1	0.047
398712	25	3/4	4	10	51	22	29	1 1/4	0.065
398713	32	1	4	10	58	25	33	1 1/2	0.093
398714	40	1 1/4	6	12	74	29	39	2	0.161
398715	50	1 1/2	11	14	83	34	46	2 1/4	0.226
398716	63	2	17	18	100	41	58	2 3/4	0.372

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398710	GF PVC-C Union Plain x ASTM FPM 16mm x 3/8"	£45.04	15%	£38.28
398711	GF PVC-C Union Plain x ASTM FPM 20mm x 1/2"	£55.97	15%	£47.57
398712	GF PVC-C Union Plain x ASTM FPM 25mm x 3/4"	£68.85	15%	£58.52
398713	GF PVC-C Union Plain x ASTM FPM 32mm x 1"	£82.72	15%	£70.31
398714	GF PVC-C Union Plain x ASTM FPM 40mm x 1 1/4"	£120.40	15%	£102.34
398715	GF PVC-C Union Plain x ASTM FPM 50mm x 1 1/2"	£155.44	15%	£132.12
398716	GF PVC-C Union Plain x ASTM FPM 63mm x 2"	£237.88	15%	£202.20
