Socket Plain x Thread

Loading...
Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

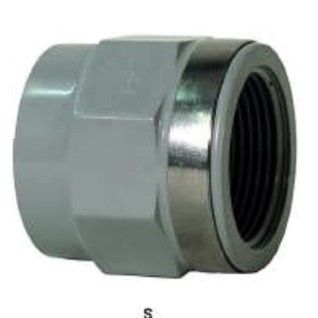

These Sockets have a plain end and a female threaded end with a stainless steel reinforcing ring. They can be connected to plastic or metal threads whilst the plain end should be solvent cemented to plastic pipe or fittings. Thread sealing pastes harmful to PVC-C should not be used.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating

16 Bar

Size Range 20mm x 1/2" - 63mm x 2"

GF-plain-x-thread-adaptor-socket-diagram

Product Code d (mm) Rp (inch) z (mm) L (mm) s (mm) Weight (kg)
398650 20 1/2 4 35 32 0.027
398651 25 3/4 3 40 36 0.035
398652 32 1 3 45 46 0.059
398653 40 1 1/4 5 51 55 0.093
398654 50 1 1/2 7 59 65 0.133
398655 63 2 7 69 80 0.211




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398650GF PVC-C Adaptor Socket Plain x Thread F 20mm x 1/2" £19.30 15%
£16.41
398651GF PVC-C Adaptor Socket Plain x Thread F 25mm x 3/4" £22.46 15%
£19.09
398652GF PVC-C Adaptor Socket Plain x Thread F 32mm x 1" £30.57 15%
£25.98
398653GF PVC-C Adaptor Socket Plain x Thread F 40mm x 1 1/4" £38.46 15%
£32.69
398654GF PVC-C Adaptor Socket Plain x Thread F 50mm x 1 1/2" £51.06 15%
£43.40
398655GF PVC-C Adaptor Socket Plain x Thread F 63mm x 2" £63.35 15%
£53.85
