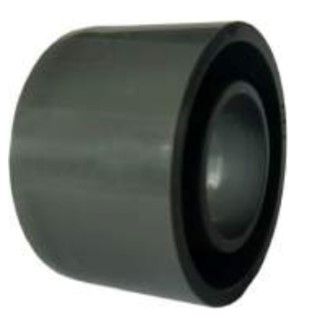

Short Pattern Reducing Bush Plain

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	20 x 16 - 225 x 160mm

GF-short-reducing-bush-diagram

Product Code	d (mm)	d1 (mm)	z (mm)	L (mm)	Weight (kg)
398588	20	16	2	16	0.004
398589	25	20	3	19	0.004
398590	32	20	6	22	0.015
398591	32	25	4	22	0.010
398592	40	20	10	26	0.023
398593	40	25	7	26	0.024
398594	40	32	4	26	0.017
398595	50	20	15	31	0.036
398596	50	25	12	31	0.037
398597	50	32	9	31	0.050
398598	50	40	5	31	0.032
398599	63	32	16	38	0.086
398600	63	40	12	38	0.074
398601	63	50	6	38	0.061
398602	75	50	13	44	0.115
398603	75	63	6	44	0.086
398604	90	50	20	51	0.196
398605	90	63	14	51	0.183
398606	90	75	8	51	0.146
398607	110	63	24	61	0.329
398608	110	90	10	61	0.283
398609	160	110	25	86	0.956
398610	225	160	33	119	2.380

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398588	GF PVC-C Reducing Bush Short Pattern 20 x 16mm	£4.88	15%	£4.15
398589	GF PVC-C Reducing Bush Short Pattern 25 x 20mm	£5.93	15%	£5.04
398590	GF PVC-C Reducing Bush Short Pattern 32 x 20mm	£8.87	15%	£7.54
398591	GF PVC-C Reducing Bush Short Pattern 32 x 25mm	£8.87	15%	£7.54
398592	GF PVC-C Reducing Bush Short Pattern 40 x 20mm	£9.58	15%	£8.14
398593	GF PVC-C Reducing Bush Short Pattern 40 x 25mm	£9.58	15%	£8.14
398594	GF PVC-C Reducing Bush Short Pattern 40 x 32mm	£9.58	15%	£8.14
398595	GF PVC-C Reducing Bush Short Pattern 50 x 20mm	£12.02	15%	£10.22
398596	GF PVC-C Reducing Bush Short Pattern 50 x 25mm	£12.02	15%	£10.22
398597	GF PVC-C Reducing Bush Short Pattern 50 x 32mm	£12.02	15%	£10.22
398598	GF PVC-C Reducing Bush Short Pattern 50 x 40mm	£12.02	15%	£10.22
398599	GF PVC-C Reducing Bush Short Pattern 63 x 32mm	£16.05	15%	£13.64
398600	GF PVC-C Reducing Bush Short Pattern 63 x 40mm	£16.05	15%	£13.64
398601	GF PVC-C Reducing Bush Short Pattern 63 x 50mm	£16.05	15%	£13.64
398602	GF PVC-C Reducing Bush Short Pattern 75 x 50mm	£25.67	15%	£21.82
398603	GF PVC-C Reducing Bush Short Pattern 75 x 63mm	£25.67	15%	£21.82
398604	GF PVC-C Reducing Bush Short Pattern 90 x 50mm	£48.13	15%	£40.91
398605	GF PVC-C Reducing Bush Short Pattern 90 x 63mm	£48.13	15%	£40.91
398606	GF PVC-C Reducing Bush Short Pattern 90 x 75mm	£48.13	15%	£40.91
398607	GF PVC-C Reducing Bush Short Pattern 110 x 63mm	£67.23	15%	£57.15
398608	GF PVC-C Reducing Bush Short Pattern 110 x 90mm	£67.23	15%	£57.15
398609	GF PVC-C Reducing Bush Short Pattern 160 x 110mm	£221.39	15%	£188.18
398610	GF PVC-C Reducing Bush Short Pattern 225 x 160mm	£575.79	15%	£489.42
