Reducing Bush Plain x Thread

Loading...
Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

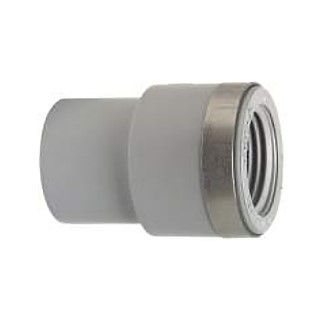

These reducing bushes have a plain spigot end and a female threaded end with a stainless steel reinforcing ring. They can be connected to plastic or metal threads whilst the plain end should be solvent cemented to plastic pipe or fittings.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating

16 Bar

Size Range 20mm x 3/8" - 63mm x 1 1/2"

GF-plain-x-thread-reducing-bush-diagram

Product Code d (mm) Rp (inch) z (mm) D (mm) L (mm) Weight (kg)
398656 20 3/8 7 25 35 0.016
398657 25 1/2 7 30 41 0.022
398658 32 3/4 15 35 48 0.033
398659 40 1 20 45 56 0.061
398660 50 1 1/4 20 55 66 0.105
398661 63 1 1/2 10 62 77 0.161




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398656GF PVC-C Reducing Bush Plain x Thread F 20mm x 3/8" £17.47 15%
£14.85
398657GF PVC-C Reducing Bush Plain x Thread F 25mm x 1/2" £19.97 15%
£16.97
398658GF PVC-C Reducing Bush Plain x Thread F 32mm x 3/4" £26.68 15%
£22.68
398659GF PVC-C Reducing Bush Plain x Thread F 40mm x 1" £41.67 15%
£35.42
398660GF PVC-C Reducing Bush Plain x Thread F 50mm x 1 1/4" £63.61 15%
£54.07
398661GF PVC-C Reducing Bush Plain x Thread F 63mm x 1 1/2" £81.73 15%
£69.47
