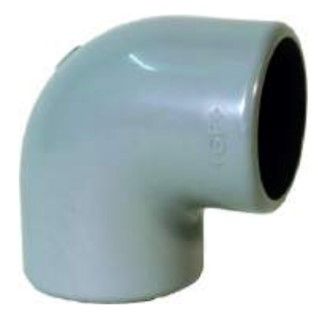

Elbow 90° Plain

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	16 - 160mm

GF-elbow-diagram

Product Code	d (mm)	z (mm)	D (mm)	L (mm)	Weight (kg)
398528	16	9	21	23	0.015
398529	20	11	25	27	0.014
398530	25	14	31	33	0.025
398531	32	17	40	39	0.047
398532	40	21	49	47	0.077
398533	50	26	61	57	0.139
398534	63	33	76	72	0.259
398535	75	40	90	84	0.437
398536	90	46	110	97	0.626
398537	110	61	128	116	1.085
398538	160	80	185	166	3.097

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398527	GF PVC-C Elbow 90° Plain 16mm	£6.40	15%	£5.44
398528	GF PVC-C Elbow 90° Plain 20mm	£7.23	15%	£6.15
398529	GF PVC-C Elbow 90° Plain 25mm	£7.95	15%	£6.76
398530	GF PVC-C Elbow 90° Plain 32mm	£9.98	15%	£8.48
398531	GF PVC-C Elbow 90° Plain 40mm	£18.02	15%	£15.32
398532	GF PVC-C Elbow 90° Plain 50mm	£23.73	15%	£20.17
398533	GF PVC-C Elbow 90° Plain 63mm	£38.18	15%	£32.45
398534	GF PVC-C Elbow 90° Plain 75mm	£88.21	15%	£74.98
398535	GF PVC-C Elbow 90° Plain 90mm	£145.23	15%	£123.45
398536	GF PVC-C Elbow 90° Plain 110mm	£236.57	15%	£201.08
398537	GF PVC-C Elbow 90° Plain 160mm	£806.08	15%	£685.17
