Composite Union Plain F SS FPM

Loading...
Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

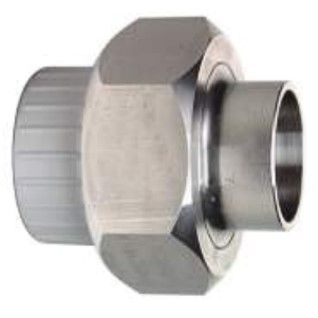

These Unions have a plain PVC-C metric bush one end and plain stainless steel (316L) end the other with a stainless steel union nut. They also contain FPM O-ring gasket seals.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating

16 Bar

Size Range 16mm x 3/8" - 63mm x 2"

GF-union-SS-socket-diagram

Product Code d (mm) d1 (mm) z (mm) L (mm) L1 (mm) L2 (mm) e (mm) s (mm) G (inch) Weight (kg)
398758 16 17 28 42 18 24 1.6 32 3/4 0.101
398759 20 21 32 48 22 26 2.0 41 1 0.171
398760 25 27 33 52 23 29 2.0 46 1 1/4 0.204
398761 32 34 36 58 26 33 2.0 55 1 1/2 0.313
398762 40 42 38 64 26 39 2.0 68 2 0.493
398763 50 48 42 73 28 46 2.0 74 2 1/4 0.566
398764 63 60 50 88 32 58 2.6 88 2 3/4 0.885




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398758GF PVC-C Composite Union Plain F SS FPM 16mm £129.59 15%
£110.15
398759GF PVC-C Composite Union Plain F SS FPM 20mm £158.85 15%
£135.02
398760GF PVC-C Composite Union Plain F SS FPM 25mm £179.83 15%
£152.86
398761GF PVC-C Composite Union Plain F SS FPM 32mm £217.26 15%
£184.67
398762GF PVC-C Composite Union Plain F SS FPM 40mm £308.80 15%
£262.48
398763GF PVC-C Composite Union Plain F SS FPM 50mm £342.89 15%
£291.46
398764GF PVC-C Composite Union Plain F SS FPM 63mm £463.24 15%
£393.75
