Spigot Adaptor Plain M x Thread M
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

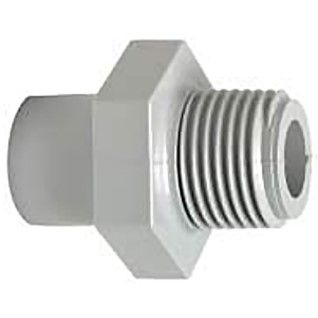

These adaptors have a plain spigot end and a tapered male threaded for connections to threaded pipe or fittings.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 16mm x 3/8" - 63mm x 2" |
| Product Code | d (mm) | R (inch) | d1 (mm) | z (mm) | z1 (mm) | s (mm) | Weight (kg) |
| 398662 | 12 | 3/8 | 16 | 35 | 23 | 27 | 0.010 |
| 398663 | 16 | 1/2 | 20 | 42 | 28 | 32 | 0.017 |
| 398664 | 20 | 3/4 | 25 | 47 | 31 | 36 | 0.026 |
| 398665 | 25 | 1 | 32 | 54 | 35 | 46 | 0.043 |
| 398666 | 32 | 1 1/4 | 40 | 60 | 38 | 55 | 0.065 |
| 398667 | 40 | 1 1/2 | 50 | 66 | 40 | 65 | 0.102 |
| 398668 | 50 | 2 | 63 | 78 | 47 | 80 | 0.173 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
