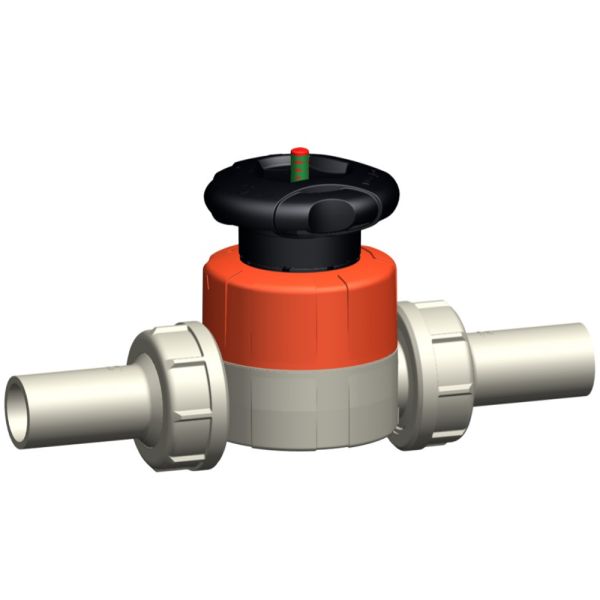

Diaphragm Valve Spigot EPDM

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

This diaphragm valve uses a central union nut instead of the commonly used four metal screws, meaning there is a non-corrosive connection allowing for even surface pressure and a pressure rating up to 16 bar.

They allow for flow in either direction irrespective of installation position, have spigot ends, EPDM gasket seals, a lockable handwheel with a two-colour indicator and they offer excellent resistance to corrosion.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating

16 Bar

Size Range 20 - 63mm




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398173GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 20mm £278.31 0%
£278.31
398174GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 25mm £290.90 0%
£290.90
398175GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 32mm £356.31 0%
£356.31
398176GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 40mm £434.29 0%
£434.29
398177GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 50mm £560.77 0%
£560.77
398178GF PROGEF Diaphragm Valve 514 Spigot Ends EPDM 63mm £704.07 0%
£704.07
