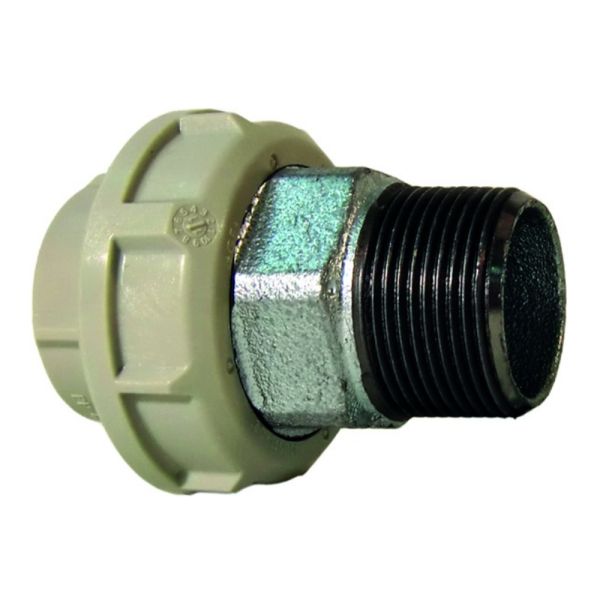

Georg Fischer PROGEF SF Union Plain x Malleable Iron M Thread

Georg Fischer PROGEF SF Union Plain x Malleable Iron M Thread

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These PROGEF adaptor unions a plain PP-H metric bush and nut one end and a malleable iron male thread Rp at the other end. They also contain an EPDM O-ring gasket seal.

Material	PP-H, Malleable Iron
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	20mm x 1/2" - 63mm x 2"

GF-union-plain-x-MI-thread-diagram

Product Code	d (mm)	R (inch)	z (mm)	D (mm)	L (mm)	L1 (mm)	L2 (mm)	s (mm)	G (inch)	Weight (kg)
397503	20	1/2	50	43	66	40	26	25	1	0.112
397504	25	3/4	53	51	71	43	28	31	1 1/4	0.171
397505	32	1	58	58	78	48	30	38	1 1/2	0.236
397506	40	1 1/4	69	72	91	57	34	48	2	0.236
397507	50	1 1/2	73	83	98	59	39	54	2 1/4	0.512
397508	63	2	80	100	109	62	47	67	2 3/4	0.763

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397503	GF PROGEF SF Adaptor Union x Thread M MI 20mm x 1/2"	£19.31	15%	£16.41
397504	GF PROGEF SF Adaptor Union x Thread M MI 25mm x 3/4"	£20.63	15%	£17.54
397505	GF PROGEF SF Adaptor Union x Thread M MI 32mm x 1"	£26.13	15%	£22.21
397506	GF PROGEF SF Adaptor Union x Thread M MI 40mm x 1 1/4"	£41.61	15%	£35.37
397507	GF PROGEF SF Adaptor Union x Thread M MI 50mm x 1 1/2"	£48.13	15%	£40.91
397508	GF PROGEF SF Adaptor Union x Thread M MI 63mm x 2"	£71.62	15%	£60.88
