Georg Fischer PROGEF SF Union Plain x Malleable Iron F Thread

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

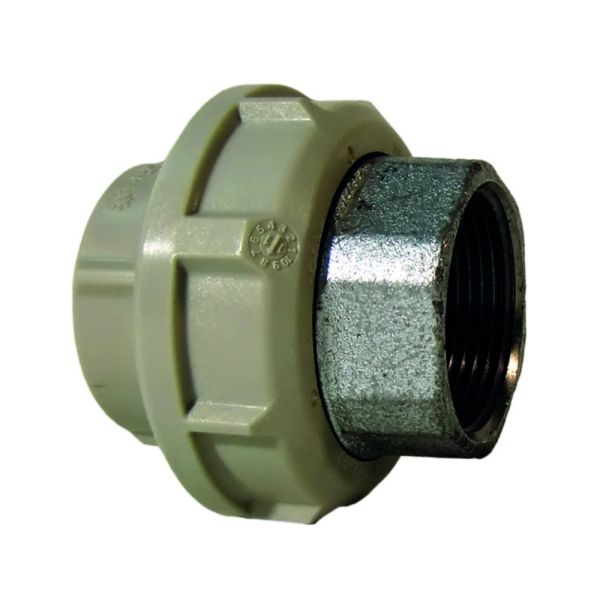

These PROGEF adaptor unions a plain PP-H metric bush and nut one end and a malleable iron female thread Rp at the other end. They also contain an EPDM O-ring gasket seal.

Material PP-H, Malleable Iron
Temperature Range 0°C to 80°C
Pressure Rating 16 Bar
Size Range 20mm x 1/2" - 63mm x 2"

GF-union-plain-x-MI-thread-diagram

Product Code d (mm) Rp (inch) z1 (mm) z2 (mm) D (mm) L (mm) L1 (mm) L2 (mm) s (mm) G (inch) Weight (kg)
397497 20 1/2 9 10 43 48 22 26 25 1 0.073
397498 25 3/4 7 10 51 50 22 28 31 1 1/4 0.118
397499 32 1 9 10 58 56 26 30 38 1 1/2 0.199
397500 40 1 1/4 12 12 72 65 30 34 48 2 0.276
397501 50 1 1/2 14 14 83 72 33 39 54 2 1/4 0.317
397502 63 2 11 18 100 82 35 47 67 2 3/4 0.579



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
397497GF PROGEF SF Adaptor Union x Thread F MI 20mm x 1/2" £15.71 15%
£13.35
397498GF PROGEF SF Adaptor Union x Thread F MI 25mm x 3/4" £19.31 15%
£16.41
397499GF PROGEF SF Adaptor Union x Thread F MI 32mm x 1" £21.83 15%
£18.56
397500GF PROGEF SF Adaptor Union x Thread F MI 40mm x 1 1/4" £42.35 15%
£36.00
397501GF PROGEF SF Adaptor Union x Thread F MI 50mm x 1 1/2" £49.04 15%
£41.68
397502GF PROGEF SF Adaptor Union x Thread F MI 63mm x 2" £56.82 15%
£48.30
