Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

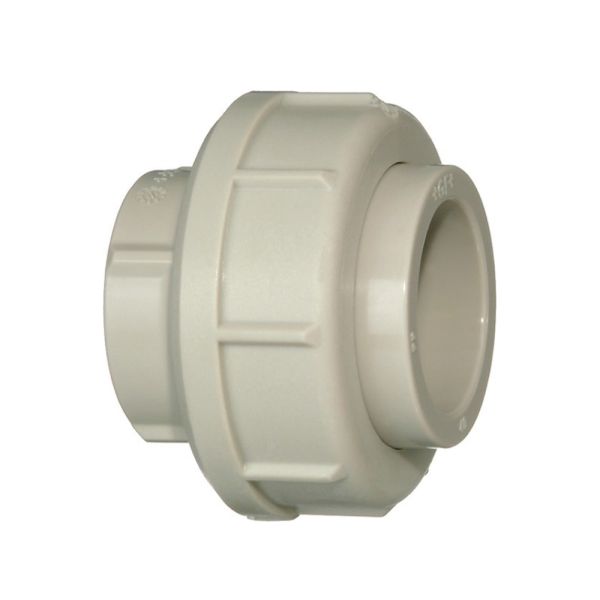

These PROGEF unions have O-ring groove faces, socket fusion ends and FPM gaskets.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 10 Bar
Size Range 16mm - 110mm

GF-socket-fusion-union-diagram

Product Code d (mm) z1 (mm) z2 (mm) D (mm) L1 (mm) L2 (mm) G (inch) Weight (kg)
397481 16 3 9 35 18 24 3/4 0.020
397482 20 3 10 48 19 26 1 0.038
397483 25 3 10 58 21 28 1 1/4 0.062
397484 32 3 10 65 23 30 1 1/2 0.080
397485 40 3 12 79 25 34 2 0.137
397486 50 3 14 91 28 39 2 1/4 0.136
397487 63 3 18 111 32 47 2 3/4 0.251
397488 75 3 18 135 36 51 S107,5x3.6 0.432
397489 90 5 18 158 42 55 S127,5x3.6 0.625
397490 110 5 10 188 49 54 S152,5x3.6 1.009



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
397481GF PROGEF SF Union FPM 16mm £55.64 15%
£47.29
397482GF PROGEF SF Union FPM 20mm £58.23 15%
£49.50
397483GF PROGEF SF Union FPM 25mm £62.80 15%
£53.38
397484GF PROGEF SF Union FPM 32mm £70.83 15%
£60.21
397485GF PROGEF SF Union FPM 40mm £92.86 15%
£78.93
397486GF PROGEF SF Union FPM 50mm £118.35 15%
£100.60
397487GF PROGEF SF Union FPM 63mm £157.16 15%
£133.59
397488GF PROGEF SF Union FPM 75mm £236.72 15%
£201.21
397489GF PROGEF SF Union FPM 90mm £295.32 15%
£251.02
397490GF PROGEF SF Union FPM 110mm £416.77 15%
£354.25
