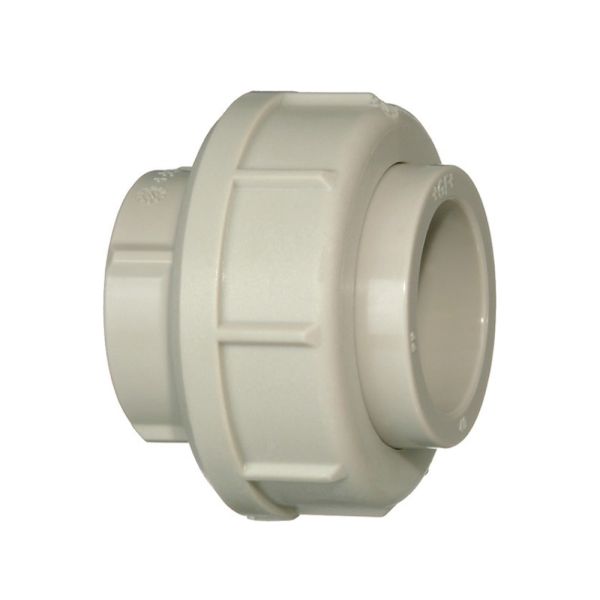

Georg Fischer PROGEF SF Union Plain EPDM
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
These PROGEF unions have O-ring groove faces, socket fusion ends and EPDM gaskets.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 10 Bar |
| Size Range | 16mm - 110mm |
| Product Code | d (mm) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 397471 | 16 | 3 | 9 | 35 | 18 | 24 | 3/4 | 0.020 |
| 397472 | 20 | 3 | 10 | 48 | 19 | 26 | 1 | 0.038 |
| 397473 | 25 | 3 | 10 | 58 | 21 | 28 | 1 1/4 | 0.062 |
| 397474 | 32 | 3 | 10 | 65 | 23 | 30 | 1 1/2 | 0.080 |
| 397475 | 40 | 3 | 12 | 79 | 25 | 34 | 2 | 0.137 |
| 397476 | 50 | 3 | 14 | 91 | 28 | 39 | 2 1/4 | 0.136 |
| 397477 | 63 | 3 | 18 | 111 | 32 | 47 | 2 3/4 | 0.251 |
| 397478 | 75 | 3 | 18 | 135 | 36 | 51 | S107,5x3.6 | 0.432 |
| 397479 | 90 | 5 | 18 | 158 | 42 | 55 | S127,5x3.6 | 0.625 |
| 397480 | 110 | 5 | 10 | 188 | 49 | 54 | S152,5x3.6 | 1.009 |
