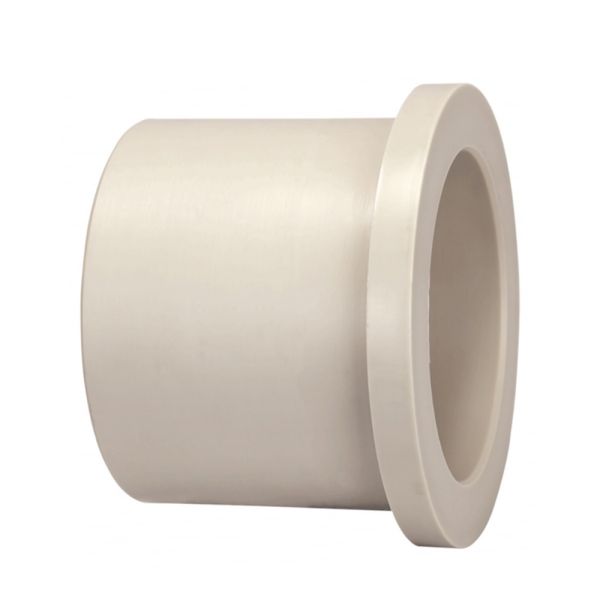

Georg Fischer PROGEF SF Outlet Flange Adaptor
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
The outlet flanges have a socket fusion metric end and are suitable for installation to the outside of our PROGEF wafer check valves.
| Material | PP-H w/Steel core |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 16 Bar |
| Size Range | 40 - 110mm |
| Product Code | d (mm) | D (mm) | D1 (mm) | z (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 397404 | 40 | 50 | 78 | 35 | 55 | 11 | 0.068 |
| 397405 | 50 | 61 | 88 | 38 | 61 | 12 | 0.087 |
| 397406 | 63 | 76 | 102 | 41 | 69 | 14 | 0.136 |
| 397407 | 75 | 90 | 122 | 49 | 79 | 16 | 0.214 |
| 397408 | 90 | 107 | 138 | 65 | 100 | 17 | 0.350 |
| 397409 | 110 | 130 | 158 | 62 | 130 | 18 | 0.468 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
