Georg Fischer PROGEF SF Elbow 90° Plain x Thread
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

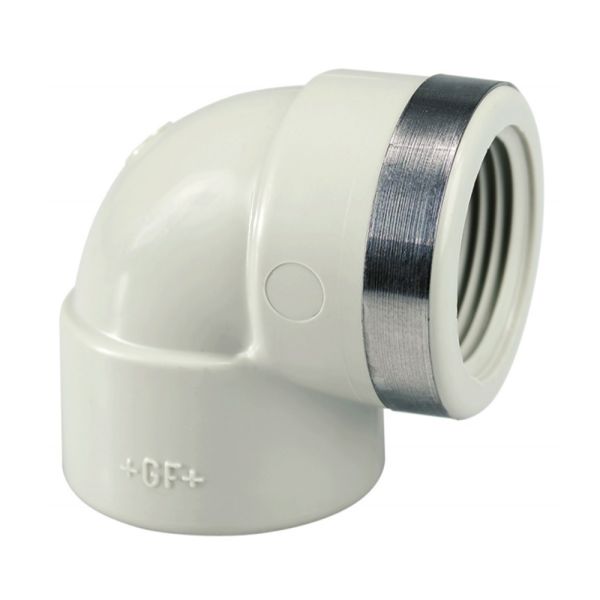

These PROGEF 90° Elbows have a plain end and a female threaded end with a stainless steel reinforcing ring. They can be connected to plastic or metal threads whilst the plain end should be solvent cemented to plastic pipe or fittings.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 16 Bar |
| Size Range | 20mm x 1/2" - 40mm x 1 1/4" |
| Product Code | d (mm) | Rp (inch) | z1 (mm) | z2 (mm) | D (mm) | L (mm) | Weight (kg) |
| 397451 | 20 | 1/2 | 14 | 14 | 30 | 28 | 0.049 |
| 397452 | 25 | 3/4 | 16 | 16 | 35 | 32 | 0.077 |
| 397453 | 32 | 1 | 20 | 20 | 44 | 38 | 0.126 |
| 397454 | 40 | 1 1/4 | 24 | 24 | 54 | 44 | 0.192 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
