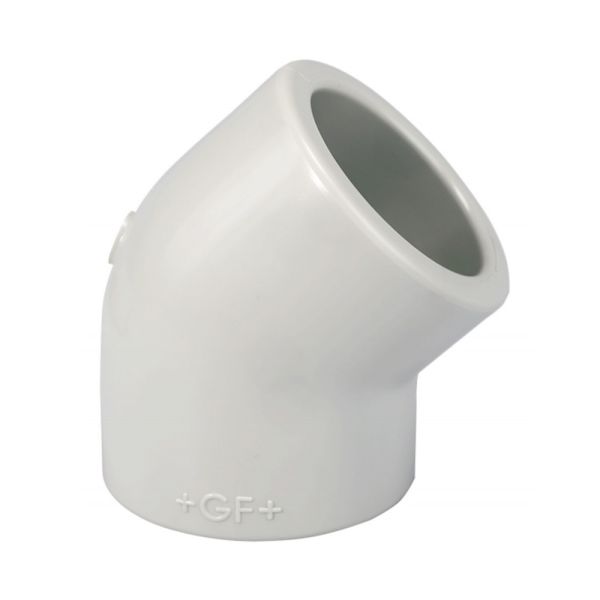

Georg Fischer PROGEF SF Elbow 45° Plain

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	16 - 110mm

GF-elbow-45-diagram

Product Code	d (mm)	z (mm)	D (mm)	L (mm)	Weight (kg)
397312	16	7	23	20	0.009
397313	20	7	31	21	0.016
397314	25	8	36	24	0.024
397315	32	10	44	28	0.036
397316	40	13	53	33	0.059
397317	50	13	64	36	0.084
397318	63	16	82	43	0.183
397319	75	20	93	51	0.219
397320	90	23	114	58	0.336
397321	110	27	134	68	0.657

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397312	GF PROGEF SF Elbow 45° 16mm	£8.50	15%	£7.23
397313	GF PROGEF SF Elbow 45° 20mm	£9.37	15%	£7.96
397314	GF PROGEF SF Elbow 45° 25mm	£10.25	15%	£8.71
397315	GF PROGEF SF Elbow 45° 32mm	£11.51	15%	£9.78
397316	GF PROGEF SF Elbow 45° 40mm	£14.17	15%	£12.04
397317	GF PROGEF SF Elbow 45° 50mm	£18.95	15%	£16.11
397318	GF PROGEF SF Elbow 45° 63mm	£24.25	15%	£20.61
397319	GF PROGEF SF Elbow 45° 75mm	£58.44	15%	£49.67
397320	GF PROGEF SF Elbow 45° 90mm	£67.95	15%	£57.76
397321	GF PROGEF SF Elbow 45° 110mm	£108.48	15%	£92.21
