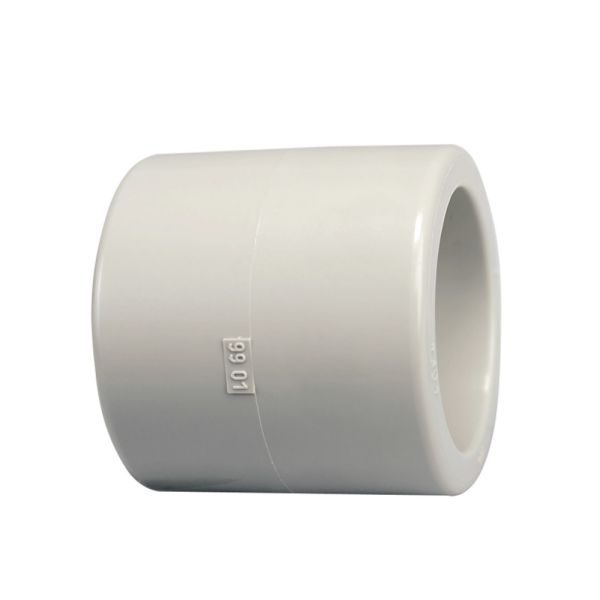

Georg Fischer PROGEF SF Socket Plain

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	16 - 110mm

GF-sockets-diagram

Product Code	d (mm)	z (mm)	D (mm)	L (mm)	Weight (kg)
397332	16	7	26	33	0.010
397333	20	7	31	35	0.013
397334	25	7	36	39	0.019
397335	32	7	44	43	0.026
397336	40	8	54	48	0.041
397337	50	8	66	54	0.072
397338	63	8	82	62	0.118
397339	75	8	93	70	0.147
397340	90	11	112	81	0.238
397341	110	14	134	96	0.425

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397332	GF PROGEF SF Socket 16mm	£3.86	15%	£3.28
397333	GF PROGEF SF Socket 20mm	£4.17	15%	£3.54
397334	GF PROGEF SF Socket 25mm	£4.45	15%	£3.78
397335	GF PROGEF SF Socket 32mm	£6.17	15%	£5.24
397336	GF PROGEF SF Socket 40mm	£7.47	15%	£6.35
397337	GF PROGEF SF Socket 50mm	£13.19	15%	£11.21
397338	GF PROGEF SF Socket 63mm	£19.98	15%	£16.98
397339	GF PROGEF SF Socket 75mm	£32.83	15%	£27.91
397340	GF PROGEF SF Socket 90mm	£40.93	15%	£34.79
397341	GF PROGEF SF Socket 110mm	£63.73	15%	£54.17
