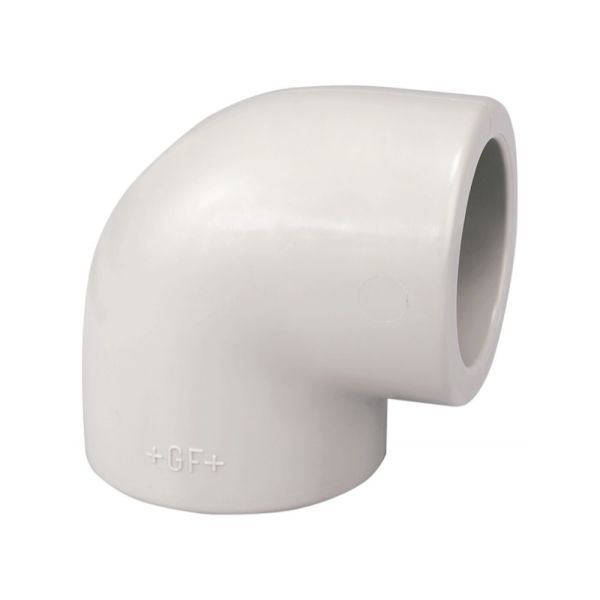

Georg Fischer PROGEF SF Elbow 90° Plain

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	16 - 110mm

GF-elbow-diagram

Product Code	d (mm)	z (mm)	D (mm)	L (mm)	Weight (kg)
397302	16	12	26	25	0.014
397303	20	14	31	28	0.020
397304	25	16	36	32	0.029
397305	32	20	44	38	0.044
397306	40	24	54	44	0.071
397307	50	28	66	51	0.121
397308	63	35	82	62	0.228
397309	75	45	93	76	0.301
397310	90	53	110	88	0.477
397311	110	65	134	106	0.869

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397302	GF PROGEF SF Elbow 90° 16mm	£6.47	15%	£5.50
397303	GF PROGEF SF Elbow 90° 20mm	£6.97	15%	£5.92
397304	GF PROGEF SF Elbow 90° 25mm	£7.69	15%	£6.54
397305	GF PROGEF SF Elbow 90° 32mm	£9.06	15%	£7.70
397306	GF PROGEF SF Elbow 90° 40mm	£11.59	15%	£9.85
397307	GF PROGEF SF Elbow 90° 50mm	£21.26	15%	£18.07
397308	GF PROGEF SF Elbow 90° 63mm	£26.77	15%	£22.75
397309	GF PROGEF SF Elbow 90° 75mm	£62.33	15%	£52.98
397310	GF PROGEF SF Elbow 90° 90mm	£70.20	15%	£59.67
397311	GF PROGEF SF Elbow 90° 110mm	£105.79	15%	£89.92
