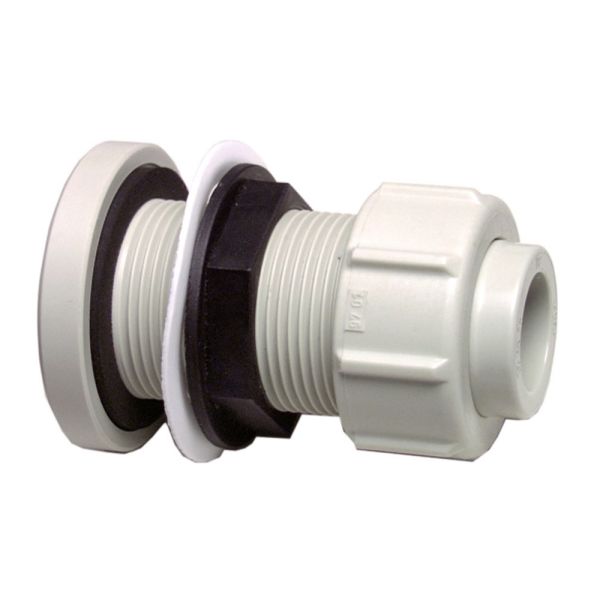

Georg Fischer PROGEF SF Tank Connector

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These PROGEF tank connectors have a union with a metric socket end and an EPDM gasket.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	20mm - 63mm

GF-sf-tank-connector-diagram

Product Code	d (mm)	D (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	s (mm)	G (inch)	Tank Bore Diameter (mm)	Weight (kg)
397465	20	56	89	67	11	30	16	38	1	35	0.098
397466	25	65	96	72	12	32	18	47	1 1/4	43	0.153
397467	32	70	100	75	12	33	20	53	1 1/2	49	0.185
397468	40	95	106	78	12	32	22	75	2	61	0.292
397469	50	95	112	82	13	32	25	75	2 1/4	67	0.308
397470	63	115	112	87	13	33	29	101	2 3/4	83	0.493

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397465	GF PROGEF SF Tank Connector 20mm	£40.05	15%	£34.04
397466	GF PROGEF SF Tank Connector 25mm	£42.05	15%	£35.74
397467	GF PROGEF SF Tank Connector 32mm	£55.64	15%	£47.29
397468	GF PROGEF SF Tank Connector 40mm	£87.63	15%	£74.49
397469	GF PROGEF SF Tank Connector 50mm	£113.82	15%	£96.75
397470	GF PROGEF SF Tank Connector 63mm	£126.18	15%	£107.25
