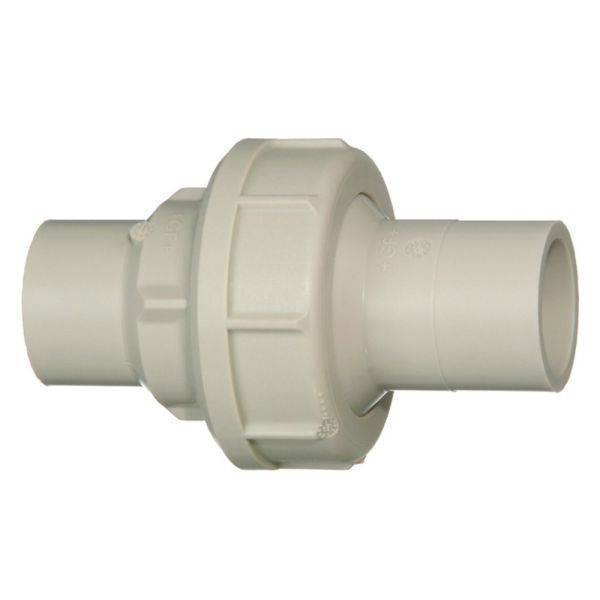

Georg Fischer PROGEF BF Union Plain EPDM 10 Bar

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These PROGEF unions have infrared welding compatible butt fusion ends and EPDM gaskets.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 10 Bar
Size Range 20mm - 110mm

GF-butt-fusion-union-diagram

Product Code d (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) L4 (mm) D (mm) e (mm) G (inch) Weight (kg)
398031 20 107 54.0 53.0 13 26 48 1.9 1 0.047
398032 25 113 57.0 56.0 12 26 58 2.3 1 1/4 0.072
398033 32 119 60.0 59.0 14 26 65 2.9 1 1/2 0.100
398034 40 126 63.0 63.0 16 26 79 3.7 2 0.145
398035 50 131 65.5 65.5 19 26 91 4.6 2 1/4 0.190
398036 63 137 69.0 68.0 20 26 111 5.8 2 3/4 0.332
398037 75 131 66.0 65.5 22 24 135 6.8 S107,5x3.6 0.520
398038 90 131 65.5 65.5 22 24 135 8.2 S107,5x3.6 0.539
398039 110 131 65.5 65.5 22 25 158 10.0 S127,5x3.6 0.758



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398031GF PROGEF BF Union EPDM 10 Bar 20mm £30.10 10%
£27.09
398032GF PROGEF BF Union EPDM 10 Bar 25mm £37.04 10%
£33.34
398033GF PROGEF BF Union EPDM 10 Bar 32mm £38.15 10%
£34.34
398034GF PROGEF BF Union EPDM 10 Bar 40mm £54.38 10%
£48.94
398035GF PROGEF BF Union EPDM 10 Bar 50mm £67.61 10%
£60.85
398036GF PROGEF BF Union EPDM 10 Bar 63mm £88.78 10%
£79.90
398037GF PROGEF BF Union EPDM 10 Bar 75mm £151.40 10%
£136.26
398038GF PROGEF BF Union EPDM 10 Bar 90mm £200.19 10%
£180.17
398039GF PROGEF BF Union EPDM 10 Bar 110mm £267.50 10%
£240.75
