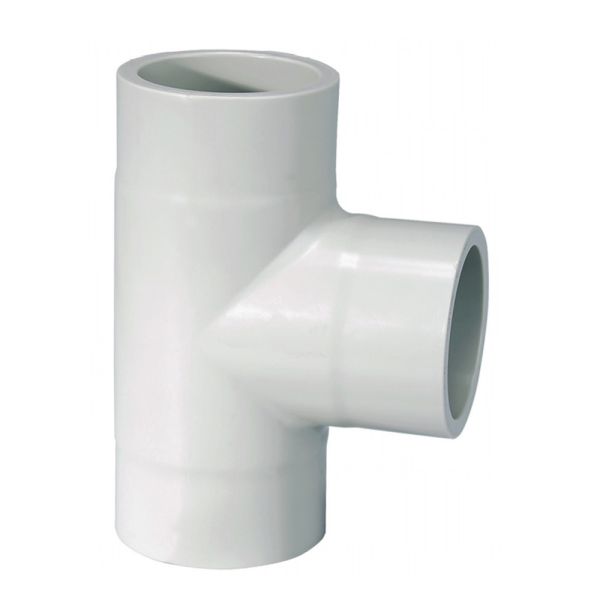

Georg Fischer PROGEF BF Tee 90° Plain 10 Bar

Skip to the beginning of the images gallery

More Info

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These tees are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus^®) compatible up to 315mm.

355 - 500mm fittings are manufactured from PP-R.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	10 Bar
Size Range	20 - 500mm

GF-bf-tee-90-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
397599	20	38	21	1.9	0.011
397600	25	42	21	2.3	0.018
397601	32	46	21	2.9	0.032
397602	40	51	23	3.7	0.062
397603	50	58	22	4.6	0.105
397604	63	66	20	5.8	0.186
397605	75	75	20	6.8	0.293
397606	90	90	20	8.2	0.521
397607	110	110	20	10.0	0.928
397608	125	125	25	11.4	1.347
397609	140	140	28	12.7	1.923
397610	160	160	28	14.6	2.844
397611	180	215	94	16.4	5.475
397612	200	200	35	18.2	5.579
397613	225	220	35	20.5	7.812
397614	250	227	68	22.7	10.400
397615	280	267	87	25.4	15.170
397616	315	283	86	28.6	20.330
397617	355	345	105	32.2	31.100
397618	400	365	105	36.3	40.900
397619	450	425	135	40.9	60.300
397620	500	470	135	45.4	81.900

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397599	GF PROGEF BF Tee 90° 10 Bar 20mm	£5.17	10%	£4.65
397600	GF PROGEF BF Tee 90° 10 Bar 25mm	£5.36	10%	£4.82
397601	GF PROGEF BF Tee 90° 10 Bar 32mm	£6.19	10%	£5.57
397602	GF PROGEF BF Tee 90° 10 Bar 40mm	£10.84	10%	£9.76
397603	GF PROGEF BF Tee 90° 10 Bar 50mm	£14.90	10%	£13.41
397604	GF PROGEF BF Tee 90° 10 Bar 63mm	£21.44	10%	£19.30
397605	GF PROGEF BF Tee 90° 10 Bar 75mm	£43.84	10%	£39.46
397606	GF PROGEF BF Tee 90° 10 Bar 90mm	£62.45	10%	£56.21
397607	GF PROGEF BF Tee 90° 10 Bar 110mm	£90.92	10%	£81.83
397608	GF PROGEF BF Tee 90° 10 Bar 125mm	£137.29	10%	£123.56
397609	GF PROGEF BF Tee 90° 10 Bar 140mm	£174.79	10%	£157.31
397610	GF PROGEF BF Tee 90° 10 Bar 160mm	£300.26	10%	£270.23
397611	GF PROGEF BF Tee 90° 10 Bar 180mm	£581.53	10%	£523.38
397612	GF PROGEF BF Tee 90° 10 Bar 200mm	£463.96	10%	£417.56
397613	GF PROGEF BF Tee 90° 10 Bar 225mm	£603.78	10%	£543.40
397614	GF PROGEF BF Tee 90° 10 Bar 250mm	£793.97	10%	£714.57
397615	GF PROGEF BF Tee 90° 10 Bar 280mm	£1,285.33	10%	£1,156.80
397616	GF PROGEF BF Tee 90° 10 Bar 315mm	£1,822.58	10%	£1,640.32
397617	GF PROGEF BF Tee 90° 10 Bar 355mm	£2,312.26	10%	£2,081.03
397618	GF PROGEF BF Tee 90° 10 Bar 400mm	£2,986.74	10%	£2,688.07
397619	GF PROGEF BF Tee 90° 10 Bar 450mm	£7,763.43	10%	£6,987.09
397620	GF PROGEF BF Tee 90° 10 Bar 500mm	£9,864.78	10%	£8,878.30
