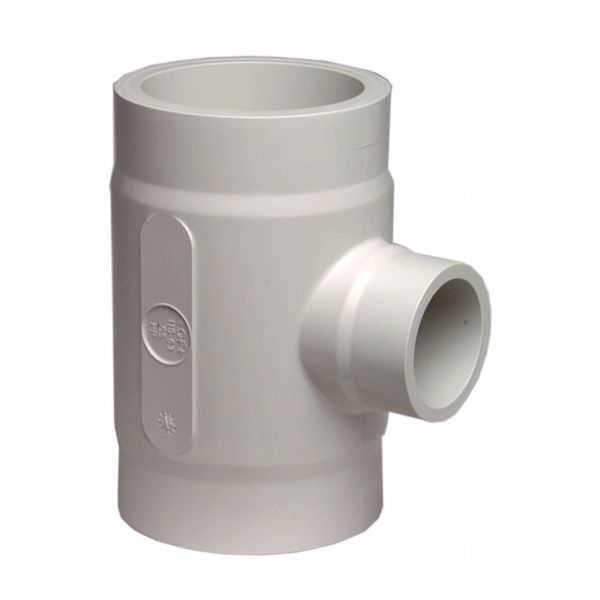

Georg Fischer PROGEF BF Reducing Tee 90° Plain 6 Bar
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
These tees are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus®) compatible up to 225x160mm.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 10 Bar |
| Size Range | 63 x 32mm - 225 x 160mm |
| Product Code | d (mm) | d1 (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | e (mm) | e1 (mm) | Weight (kg) |
| *397660 | 63 | 32 | 65 | 70 | 25 | 25 | 3.6 | 2.9 | 0.120 |
| 397661 | 63 | 50 | 65 | 70 | 25 | 25 | 3.6 | 2.9 | 0.124 |
| *397662 | 75 | 32 | 70 | 75 | 25 | 25 | 4.3 | 2.9 | 0.178 |
| 397663 | 75 | 50 | 70 | 75 | 25 | 25 | 4.3 | 2.9 | 0.182 |
| 397664 | 75 | 63 | 70 | 75 | 25 | 25 | 4.3 | 3.6 | 0.190 |
| 397665 | 90 | 50 | 80 | 85 | 25 | 25 | 5.1 | 2.9 | 0.305 |
| 397666 | 90 | 63 | 80 | 85 | 25 | 25 | 5.1 | 3.6 | 0.315 |
| 397667 | 90 | 75 | 80 | 85 | 25 | 25 | 5.1 | 4.3 | 0.320 |
| *397668 | 110 | 32 | 90 | 95 | 30 | 25 | 6.3 | 2.9 | 0.489 |
| 397669 | 110 | 50 | 90 | 95 | 30 | 25 | 6.3 | 2.9 | 0.490 |
| 397670 | 110 | 63 | 90 | 95 | 30 | 25 | 6.3 | 3.6 | 0.491 |
| 397671 | 110 | 75 | 90 | 95 | 30 | 25 | 6.3 | 4.3 | 0.500 |
| 397672 | 110 | 90 | 90 | 95 | 30 | 25 | 6.3 | 5.1 | 0.514 |
| 397673 | 160 | 63 | 142 | 135 | 50 | 30 | 9.1 | 3.6 | 1.535 |
| 397674 | 160 | 75 | 142 | 135 | 50 | 30 | 9.1 | 4.3 | 1.550 |
| 397675 | 160 | 90 | 142 | 135 | 50 | 30 | 9.1 | 5.1 | 1.567 |
| 397676 | 160 | 110 | 142 | 135 | 50 | 30 | 9.1 | 6.3 | 1.577 |
| 397677 | 225 | 90 | 155 | 165 | 40 | 30 | 12.8 | 5.1 | 3.350 |
| 397678 | 225 | 110 | 155 | 165 | 40 | 30 | 12.8 | 6.3 | 3.330 |
| 397679 | 225 | 160 | 155 | 165 | 40 | 30 | 12.8 | 9.1 | 3.427 |
*SDR11 Branches
