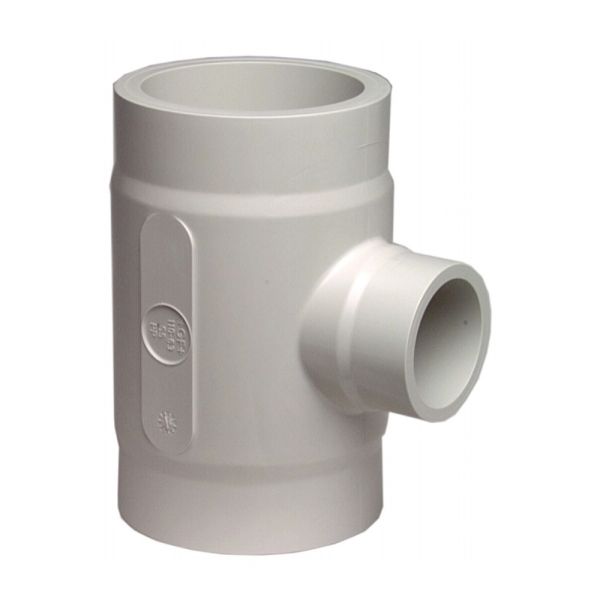

Georg Fischer PROGEF BF Reducing Tee 90° Plain 10 Bar

Georg Fischer PROGEF BF Reducing Tee 90° Plain 10 Bar

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These tees are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus^®) compatible up to 225x160mm.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	10 Bar
Size Range	63 x 32mm - 250 x 160mm

GF-bf-reducing-tee-90-diagram

Product Code	d (mm)	d1 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	e (mm)	e1 (mm)	Weight (kg)
397639	63	32	65	70	25	25	5.8	2.9	0.161
397640	63	50	65	70	25	25	5.8	4.6	0.170
397641	75	32	70	75	25	25	6.8	2.9	0.238
397642	75	50	70	75	25	25	6.8	4.6	0.249
397643	75	63	70	75	25	25	6.8	5.8	0.258
397644	90	50	80	85	25	25	8.2	4.6	0.420
397645	90	63	80	85	25	25	8.2	5.8	0.428
397646	90	75	80	85	25	25	8.2	6.8	0.430
397647	110	32	90	95	30	25	10.0	2.9	0.652
397648	110	50	90	95	30	25	10.0	4.6	0.659
397649	110	63	90	95	30	25	10.0	5.8	0.665
397650	110	75	90	95	30	25	10.0	6.8	0.681
397651	110	90	90	95	30	25	10.0	8.2	0.701
397652	160	63	142	135	50	30	14.6	5.8	2.130
397653	160	75	142	135	50	30	14.6	6.8	2.143
397654	160	90	142	135	50	30	14.6	8.2	2.148
397655	160	110	142	135	50	30	14.6	10.0	2.186
397656	225	90	155	165	40	30	20.5	8.2	4.576
397657	225	110	155	165	40	30	20.5	10.0	4.624
397658	225	160	155	165	40	30	20.5	14.6	4.685
397659	250	160	227	387	68	53	22.7	14.6	12.500

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397639	GF PROGEF BF Reducing Tee 90° 10 Bar 63mm x 32mm	£41.48	10%	£37.33
397640	GF PROGEF BF Reducing Tee 90° 10 Bar 63mm x 50mm	£41.48	10%	£37.33
397641	GF PROGEF BF Reducing Tee 90° 10 Bar 75mm x 32mm	£60.12	10%	£54.11
397642	GF PROGEF BF Reducing Tee 90° 10 Bar 75mm x 50mm	£60.12	10%	£54.11
397643	GF PROGEF BF Reducing Tee 90° 10 Bar 75mm x 63mm	£60.12	10%	£54.11
397644	GF PROGEF BF Reducing Tee 90° 10 Bar 90mm x 50mm	£75.22	10%	£67.70
397645	GF PROGEF BF Reducing Tee 90° 10 Bar 90mm x 63mm	£85.23	10%	£76.71
397646	GF PROGEF BF Reducing Tee 90° 10 Bar 90mm x 75mm	£85.23	10%	£76.71
397647	GF PROGEF BF Reducing Tee 90° 10 Bar 110mm x 32mm	£107.86	10%	£97.07
397648	GF PROGEF BF Reducing Tee 90° 10 Bar 110mm x 50mm	£110.27	10%	£99.24
397649	GF PROGEF BF Reducing Tee 90° 10 Bar 110mm x 63mm	£120.88	10%	£108.79
397650	GF PROGEF BF Reducing Tee 90° 10 Bar 110mm x 75mm	£124.75	10%	£112.28
397651	GF PROGEF BF Reducing Tee 90° 10 Bar 110mm x 90mm	£124.75	10%	£112.28
397652	GF PROGEF BF Reducing Tee 90° 10 Bar 160mm x 63mm	£320.88	10%	£288.79
397653	GF PROGEF BF Reducing Tee 90° 10 Bar 160mm x 75mm	£324.08	10%	£291.67
397654	GF PROGEF BF Reducing Tee 90° 10 Bar 160mm x 90mm	£324.08	10%	£291.67
397655	GF PROGEF BF Reducing Tee 90° 10 Bar 160mm x 110mm	£327.15	10%	£294.44
397656	GF PROGEF BF Reducing Tee 90° 10 Bar 225mm x 90mm	£741.56	10%	£667.40
397657	GF PROGEF BF Reducing Tee 90° 10 Bar 225mm x 110mm	£741.56	10%	£667.40
397658	GF PROGEF BF Reducing Tee 90° 10 Bar 225mm x 160mm	£741.56	10%	£667.40
397659	GF PROGEF BF Reducing Tee 90° 10 Bar 250mm x 160mm	£2,021.78	10%	£1,819.60
