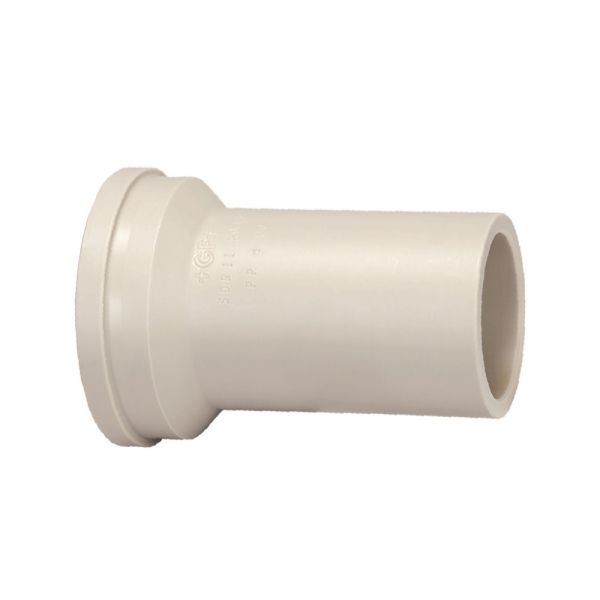

Georg Fischer PROGEF BF Long Union End

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These PROGEF union ends are infrared welding compatible butt fusion ends for conventional butt-welding according to DVS 2207 part 11.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	10 Bar
Size Range	20mm - 63mm

GF-butt-fusion-union-end-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	D (mm)	e (mm)	Weight (kg)
398061	20	67	52	30	1.9	0.011
398062	25	71	53	39	2.3	0.018
398063	32	73	55	45	2.9	0.024
398064	40	81	60	57	3.7	0.041
398065	50	87	66	63	4.6	0.054
398066	63	93	70	78	5.8	0.122

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398061	GF PROGEF BF Union End Long 20mm	£7.69	10%	£6.92
398062	GF PROGEF BF Union End Long 25mm	£9.30	10%	£8.37
398063	GF PROGEF BF Union End Long 32mm	£11.47	10%	£10.32
398064	GF PROGEF BF Union End Long 40mm	£14.72	10%	£13.25
398065	GF PROGEF BF Union End Long 50mm	£15.41	10%	£13.87
398066	GF PROGEF BF Union End Long 63mm	£22.38	10%	£20.14
