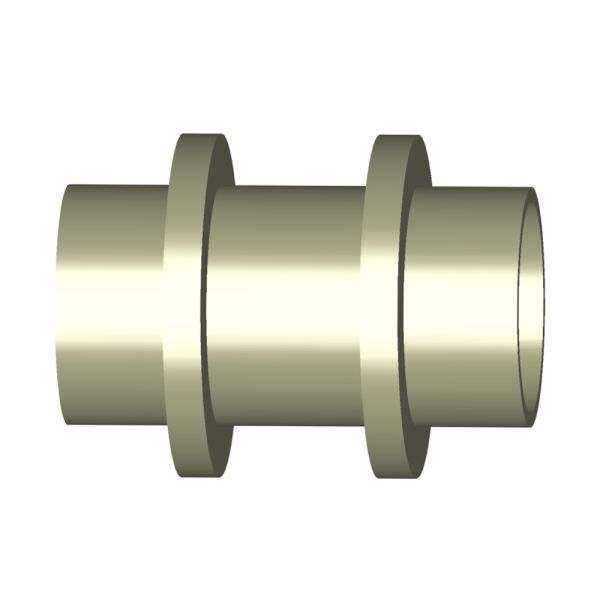

Georg Fischer PROGEF BF Fixpoint Fitting 10 Bar

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These PROGEF Fixpoint fittings are machined and infrared welding compatible (IR Plus®) up to 225mm.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 10 Bar
Size Range 63mm - 500mm

GF-fixpoint-fitting-diagram

Product Code d (mm) D (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) e (mm) Weight (kg)
397991 63 90 122 30 42 10 5.8 0.175
397992 75 110 122 30 42 10 6.8 0.254
397993 90 125 122 30 42 10 8.2 0.342
397994 110 140 142 30 52 15 10.0 0.567
397995 125 160 152 35 52 15 11.4 0.777
397996 140 180 162 40 52 15 12.7 1.023
397997 160 200 162 40 52 15 14.6 1.292
397998 180 225 182 45 52 20 16.4 1.917
397999 200 250 182 45 52 20 18.2 2.365
398000 225 280 192 45 52 25 20.5 3.294
398001 250 280 212 50 62 25 22.7 3.695
398002 280 315 222 50 62 30 25.4 4.997
398003 315 355 222 50 62 30 28.6 6.348
398004 355 400 192 30 62 35 32.2 7.405
398005 400 450 212 30 72 40 36.3 10.432
398006 450 500 232 35 72 45 40.9 14.153
398007 500 560 252 40 72 50 45.4 19.414




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
397991GF PROGEF BF Fixpoint Fitting 10 Bar 63mm £631.79 10%
£568.61
397992GF PROGEF BF Fixpoint Fitting 10 Bar 75mm £675.29 10%
£607.76
397993GF PROGEF BF Fixpoint Fitting 10 Bar 90mm £786.28 10%
£707.65
397994GF PROGEF BF Fixpoint Fitting 10 Bar 110mm £871.25 10%
£784.13
397995GF PROGEF BF Fixpoint Fitting 10 Bar 125mm £996.67 10%
£897.00
397996GF PROGEF BF Fixpoint Fitting 10 Bar 140mm £1,445.28 10%
£1,300.75
397997GF PROGEF BF Fixpoint Fitting 10 Bar 160mm £1,665.69 10%
£1,499.12
397998GF PROGEF BF Fixpoint Fitting 10 Bar 180mm £2,093.93 10%
£1,884.54
397999GF PROGEF BF Fixpoint Fitting 10 Bar 200mm £2,473.04 10%
£2,225.74
398000GF PROGEF BF Fixpoint Fitting 10 Bar 225mm £3,833.60 10%
£3,450.24
398001GF PROGEF BF Fixpoint Fitting 10 Bar 250mm £4,023.99 10%
£3,621.59
398002GF PROGEF BF Fixpoint Fitting 10 Bar 280mm £4,196.78 10%
£3,777.10
398003GF PROGEF BF Fixpoint Fitting 10 Bar 315mm £4,440.42 10%
£3,996.38
398004GF PROGEF BF Fixpoint Fitting 10 Bar 355mm £4,930.53 10%
£4,437.48
398005GF PROGEF BF Fixpoint Fitting 10 Bar 400mm £6,674.79 10%
£6,007.31
398006GF PROGEF BF Fixpoint Fitting 10 Bar 450mm £8,739.84 10%
£7,865.86
398007GF PROGEF BF Fixpoint Fitting 10 Bar 500mm £11,048.92 10%
£9,944.03
