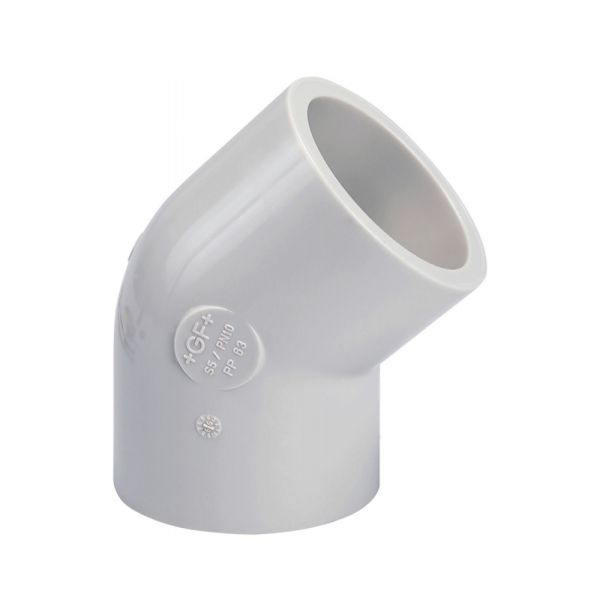

Georg Fischer PROGEF BF Elbow 45° Plain 6 Bar

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These bends are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus®) compatible.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 6 Bar
Size Range 50 - 315mm

GF-bf-elbow-45-diagram

Product Code d (mm) L (mm) L1 (mm) e (mm) Weight (kg)
397586 50 42 26 2.9 0.042
397587 63 47 29 3.6 0.081
397588 75 49 29 4.3 0.099
397589 90 57 34 5.1 0.165
397590 110 70 43 6.3 0.286
397591 125 79 48 7.1 0.570
397592 140 88 55 8.0 0.721
397593 160 100 60 9.1 1.107
397594 200 124 75 11.4 2.225
397595 225 140 85 12.8 3.194
397596 250 225 133 14.2 4.970
397597 280 235 143 15.9 7.130
397598 315 255 154 17.9 9.600




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
Code Product Name List Price You Save You Pay Quantity
397586 GF PROGEF BF Elbow 45° 6 Bar 50mm £18.57 10%
£16.71
397587 GF PROGEF BF Elbow 45° 6 Bar 63mm £31.00 10%
£27.90
397588 GF PROGEF BF Elbow 45° 6 Bar 75mm £43.53 10%
£39.18
397589 GF PROGEF BF Elbow 45° 6 Bar 90mm £53.91 10%
£48.52
397590 GF PROGEF BF Elbow 45° 6 Bar 110mm £98.87 10%
£88.98
397591 GF PROGEF BF Elbow 45° 6 Bar 125mm £141.12 10%
£127.01
397592 GF PROGEF BF Elbow 45° 6 Bar 140mm £198.66 10%
£178.79
397593 GF PROGEF BF Elbow 45° 6 Bar 160mm £214.47 10%
£193.02
397594 GF PROGEF BF Elbow 45° 6 Bar 200mm £330.57 10%
£297.51
397595 GF PROGEF BF Elbow 45° 6 Bar 225mm £381.34 10%
£343.21
397596 GF PROGEF BF Elbow 45° 6 Bar 250mm £781.34 10%
£703.21
397597 GF PROGEF BF Elbow 45° 6 Bar 280mm £1,179.05 10%
£1,061.15
397598 GF PROGEF BF Elbow 45° 6 Bar 315mm £1,467.47 10%
£1,320.72
