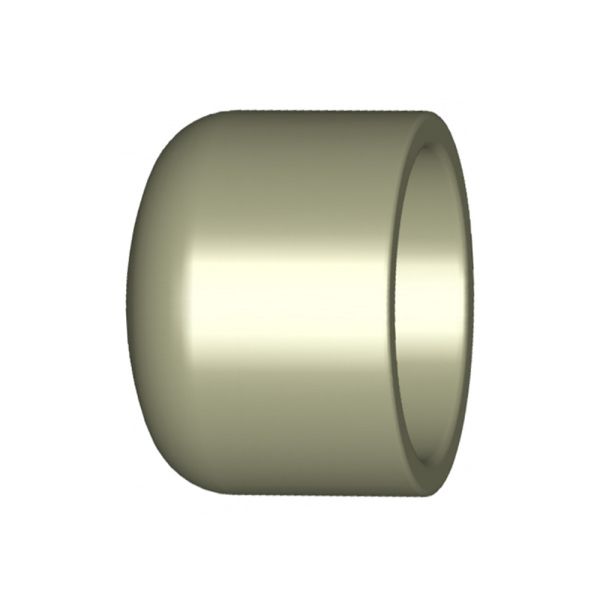

Georg Fischer PROGEF BF End Cap 90° Plain 6 Bar

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These caps are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus®) compatible up to 225mm.

250mm and above fittings manufactured from PP-R.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 10 Bar
Size Range 50 - 500mm

GF-bf-cap-20to225-diagram

Product Code d (mm) L (mm) L1 (mm) e (mm) Weight (kg)
397800 50 72 59 2.9 0.036
397801 63 86 67 3.6 0.061
397802 75 94 73 4.3 0.095
397803 90 112 83 5.1 0.160
397804 110 124 90 6.3 0.260
397805 125 130 94 7.1 0.360
397806 140 142 99 8.0 0.485
397807 160 162 109 9.1 0.735
397808 180 170 113 10.2 0.990
397809 200 179 117 11.4 1.310
397810 225 203 127 12.8 1.790


GF-bf-cap-250to500-diagram

Product Code d (mm) L (mm) e (mm) Weight (kg)
397810 250 55 14.2 1.600
397811 280 60 15.9 2.100
397812 315 65 17.9 3.000
397813 355 70 20.1 4.200
397814 400 75 22.7 6.000
397815 450 85 25.5 8.600
397816 500 90 28.3 11.600




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
397800GF PROGEF BF End Cap 6 Bar 50mm £27.67 10%
£24.90
397801GF PROGEF BF End Cap 6 Bar 63mm £36.53 10%
£32.88
397802GF PROGEF BF End Cap 6 Bar 75mm £56.81 10%
£51.13
397803GF PROGEF BF End Cap 6 Bar 90mm £86.20 10%
£77.58
397804GF PROGEF BF End Cap 6 Bar 110mm £104.68 10%
£94.21
397805GF PROGEF BF End Cap 6 Bar 125mm £114.51 10%
£103.06
397806GF PROGEF BF End Cap 6 Bar 140mm £136.34 10%
£122.71
397807GF PROGEF BF End Cap 6 Bar 160mm £156.03 10%
£140.43
397808GF PROGEF BF End Cap 6 Bar 180mm £171.52 10%
£154.37
397809GF PROGEF BF End Cap 6 Bar 200mm £190.04 10%
£171.04
397810GF PROGEF BF End Cap 6 Bar 225mm £240.02 10%
£216.02
397811GF PROGEF BF End Cap 6 Bar 250mm £291.12 10%
£262.01
397812GF PROGEF BF End Cap 6 Bar 280mm £411.16 10%
£370.04
397813GF PROGEF BF End Cap 6 Bar 315mm £561.50 10%
£505.35
397814GF PROGEF BF End Cap 6 Bar 355mm £912.48 10%
£821.23
397815GF PROGEF BF End Cap 6 Bar 400mm £1,611.07 10%
£1,449.96
397816GF PROGEF BF End Cap 6 Bar 450mm £2,120.27 10%
£1,908.24
397817GF PROGEF BF End Cap 6 Bar 500mm £2,957.01 10%
£2,661.31
