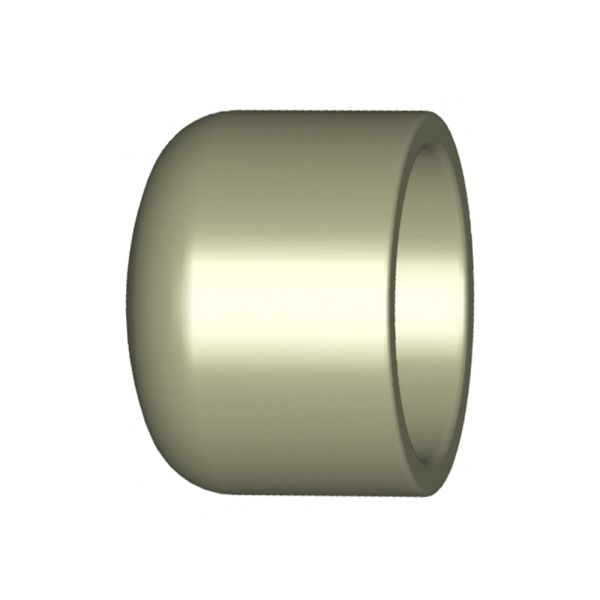

Georg Fischer PROGEF BF End Cap 90° Plain 10 Bar

Georg Fischer PROGEF BF End Cap 90° Plain 10 Bar

Skip to the beginning of the images gallery

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

These caps are manufactured from PP-H designed for conventional butt-welding in accordance with DVS 2207. They are also infrared (IR Plus^®) compatible up to 225mm.

250mm and above fittings manufactured from PP-R.

Material	PP-H
Temperature Range	0°C to 80°C
Pressure Rating	10 Bar
Size Range	20 - 500mm

GF-bf-cap-20to225-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
397778	20	49	42	1.9	0.005
397779	25	52	42	2.3	0.007
397780	32	57	47	2.9	0.016
397781	40	64	51	3.7	0.023
397782	50	72	59	4.6	0.048
397783	63	86	67	5.8	0.087
397784	75	94	73	6.8	0.138
397785	90	112	83	8.2	0.222
397786	110	124	90	10.0	0.375
397787	125	130	94	11.4	0.520
397788	140	142	99	12.7	0.695
397789	160	162	109	14.6	1.040
397790	180	170	113	16.4	1.375
397791	200	179	117	18.2	1.860
397792	225	203	127	20.5	2.625

GF-bf-cap-250to500-diagram

Product Code	d (mm)	L (mm)	e (mm)	Weight (kg)
39	250	60	22.7	1.900
39	280	65	25.4	2.600
39	315	70	28.6	3.600
39	355	80	32.2	5.100
39	400	85	36.3	7.200
39	450	95	40.9	10.200
39	500	105	74.5	14.000

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
397778	GF PROGEF BF End Cap 10 Bar 20mm	£11.00	10%	£9.90
397779	GF PROGEF BF End Cap 10 Bar 25mm	£13.81	10%	£12.43
397780	GF PROGEF BF End Cap 10 Bar 32mm	£16.21	10%	£14.59
397781	GF PROGEF BF End Cap 10 Bar 40mm	£21.19	10%	£19.07
397782	GF PROGEF BF End Cap 10 Bar 50mm	£27.67	10%	£24.90
397783	GF PROGEF BF End Cap 10 Bar 63mm	£36.53	10%	£32.88
397784	GF PROGEF BF End Cap 10 Bar 75mm	£56.81	10%	£51.13
397785	GF PROGEF BF End Cap 10 Bar 90mm	£86.20	10%	£77.58
397786	GF PROGEF BF End Cap 10 Bar 110mm	£104.68	10%	£94.21
397787	GF PROGEF BF End Cap 10 Bar 125mm	£114.51	10%	£103.06
397788	GF PROGEF BF End Cap 10 Bar 140mm	£136.34	10%	£122.71
397789	GF PROGEF BF End Cap 10 Bar 160mm	£156.03	10%	£140.43
397790	GF PROGEF BF End Cap 10 Bar 180mm	£171.52	10%	£154.37
397791	GF PROGEF BF End Cap 10 Bar 200mm	£190.04	10%	£171.04
397792	GF PROGEF BF End Cap 10 Bar 225mm	£240.02	10%	£216.02
397793	GF PROGEF BF End Cap 10 Bar 250mm	£291.12	10%	£262.01
397794	GF PROGEF BF End Cap 10 Bar 280mm	£411.16	10%	£370.04
397795	GF PROGEF BF End Cap 10 Bar 315mm	£529.63	10%	£476.67
397796	GF PROGEF BF End Cap 10 Bar 355mm	£912.48	10%	£821.23
397797	GF PROGEF BF End Cap 10 Bar 400mm	£1,611.07	10%	£1,449.96
397798	GF PROGEF BF End Cap 10 Bar 450mm	£2,366.22	10%	£2,129.60
397799	GF PROGEF BF End Cap 10 Bar 500mm	£2,943.01	10%	£2,648.71
