Georg Fischer PROGEF BF Spigot x Socket Plain M x Thread F
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

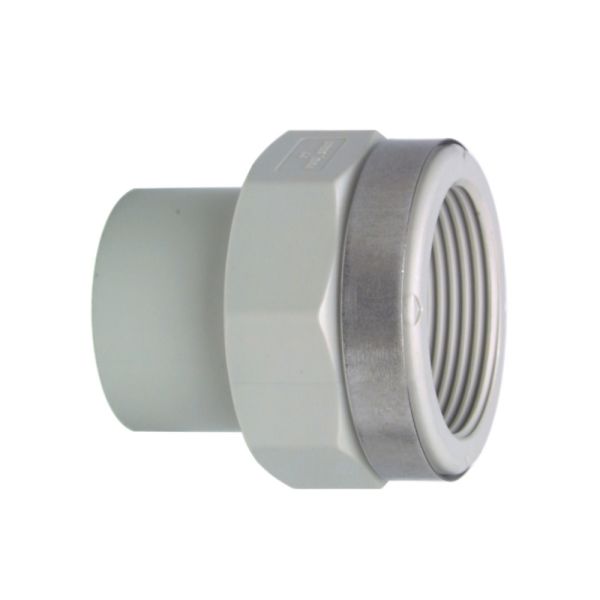

These PROGEF socket adaptors have a butt fusion spigot and a female BSP parallel threaded socket with a stainless steel reinforcing ring for connection to plastic or metal threaded fittings.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 10 Bar |
| Size Range | 20mm x 1/2" - 63mm x 2" |
| Product Code | d (mm) | Rp (inch) | L (mm) | L1 (mm) | s (mm) | e (mm) | Weight (kg) |
| 397967 | 20 | 1/2 | 49 | 23 | 32 | 1.9 | 0.017 |
| 397968 | 25 | 3/4 | 50 | 23 | 36 | 2.3 | 0.022 |
| 397969 | 32 | 1 | 54 | 23 | 46 | 2.9 | 0.038 |
| 397970 | 40 | 1 1/4 | 56 | 23 | 55 | 3.7 | 0.066 |
| 397971 | 50 | 1 1/2 | 60 | 23 | 65 | 4.6 | 0.090 |
| 397972 | 63 | 2 | 62 | 23 | 80 | 5.8 | 0.123 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
