Georg Fischer PROGEF BF Blanking Flange Set 10 Bar

Loading...
Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

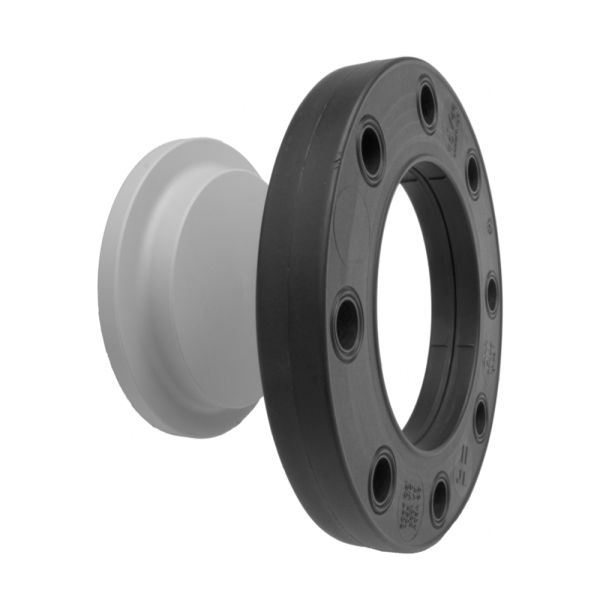

These blanking flange sets have a PP-H blanking end with a backing flange manufactured from polypropylene with glass fibre reinforcement and additional steel reinforcement on flanges above 355mm.

Material PP-H
Temperature Range 0°C to 80°C
Pressure Rating 10 Bar
Size Range 63 - 630mm

GF-bf-blanking-flange-set-diagram

Product Code d (mm) D (mm) D1 (mm) D2 (mm) D3 (mm) D4 (mm) L (mm) L1 (mm) H (mm) Weight (kg)
397872 63 75 125 165 18 102 30 14 24 0.531
397873 75 89 145 185 18 122 30 16 26 0.901
397874 90 105 160 200 18 138 30 17 27 1.054
397875 110 125 180 220 18 158 30 18 28 1.199
397876 125 132 180 220 18 158 35 25 28 1.201
397877 140 155 210 250 18 188 40 25 30 1.748
397878 160 175 240 285 22 212 40 25 32 2.312
397879 180 180 240 285 22 212 45 30 32 2.443
397880 200 232 295 340 22 268 50 32 34 3.961
397881 225 235 295 340 22 268 50 32 34 3.956
397882 250 285 350 395 22 320 55 35 38 5.425
397883 280 291 350 395 22 320 60 35 38 19.781
397884 315 335 400 445 22 370 65 35 42 8.602
397885 355 373 460 515 22 430 70 40 40 23.184
397886 400 427 515 574 26 482 75 46 40 30.304
397887 450 510 620 684 26 585 80 60 49 43.485
397888 500 530 620 684 26 585 90 60 49 46.203
397889 560 615 725 796 30 685 100 60 58 65.823
397890 600 642 725 796 30 685 110 60 68 67.056




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
397872GF PROGEF BF Blanking Flange Set 10 Bar 63mm £503.88 10%
£453.49
397873GF PROGEF BF Blanking Flange Set 10 Bar 75mm £538.74 10%
£484.87
397874GF PROGEF BF Blanking Flange Set 10 Bar 90mm £615.40 10%
£553.86
397875GF PROGEF BF Blanking Flange Set 10 Bar 110mm £677.02 10%
£609.32
397876GF PROGEF BF Blanking Flange Set 10 Bar 125mm £677.02 10%
£609.32
397877GF PROGEF BF Blanking Flange Set 10 Bar 140mm £961.07 10%
£864.96
397878GF PROGEF BF Blanking Flange Set 10 Bar 160mm £1,268.16 10%
£1,141.34
397879GF PROGEF BF Blanking Flange Set 10 Bar 180mm £1,381.21 10%
£1,243.09
397880GF PROGEF BF Blanking Flange Set 10 Bar 200mm £1,795.29 10%
£1,615.76
397881GF PROGEF BF Blanking Flange Set 10 Bar 225mm £1,968.29 10%
£1,771.46
397882GF PROGEF BF Blanking Flange Set 10 Bar 250mm £2,165.75 10%
£1,949.18
397883GF PROGEF BF Blanking Flange Set 10 Bar 280mm £2,766.22 10%
£2,489.60
397884GF PROGEF BF Blanking Flange Set 10 Bar 315mm £4,646.07 10%
£4,181.46
397885GF PROGEF BF Blanking Flange Set 10 Bar 355mm £7,524.77 10%
£6,772.29
397886GF PROGEF BF Blanking Flange Set 10 Bar 400mm £8,601.47 10%
£7,741.32
397887GF PROGEF BF Blanking Flange Set 10 Bar 450mm £15,386.31 10%
£13,847.68
397888GF PROGEF BF Blanking Flange Set 10 Bar 500mm £17,874.21 10%
£16,086.79
397889GF PROGEF BF Blanking Flange Set 10 Bar 560mm £27,188.52 10%
£24,469.67
397890GF PROGEF BF Blanking Flange Set 10 Bar 630mm £28,721.96 10%
£25,849.76
