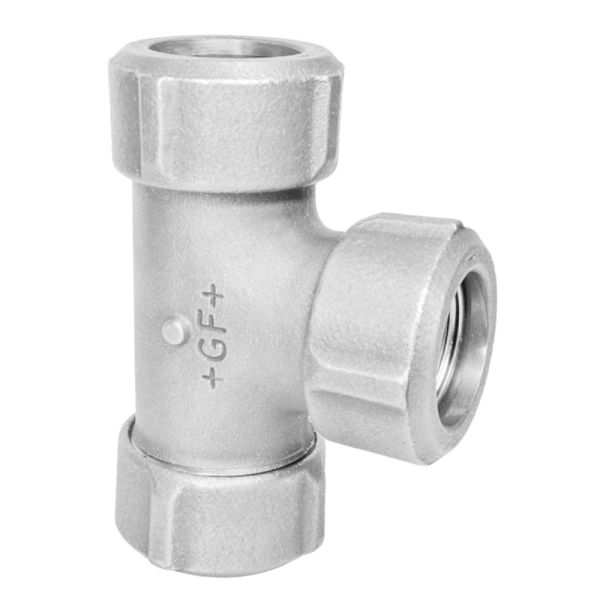

Tee 90° Steel NBR
Useful Information
These PRIMOFIT compression tees have NBR gaskets and are for connection to ISO 65 Steel pipe.
| Material | Malleable Iron |
| Type | Galvanised |
| Pressure Rating | up to 10 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (inch) | D (mm) | L (mm) | L1 (mm) | x (mm) | Weight (kg) |
| 399802 | 1/2 | 45 | 110 | 55 | 30 - 34 | 0.450 |
| 399803 | 3/4 | 51 | 115 | 58 | 30 - 34 | 0.520 |
| 399804 | 1 | 59 | 121 | 61 | 30 - 34 | 0.660 |
| 399805 | 1 1/4 | 68 | 130 | 65 | 30 - 36 | 1.260 |
| 399806 | 1 1/2 | 75 | 144 | 72 | 32 - 38 | 1.400 |
| 399807 | 2 | 96 | 166 | 83 | 36 - 42 | 2.720 |
| Product Code | Dim. (inch) | Steel Pipe Min-Max ø (mm) |
| 399802 | 1/2 | 21.0 - 21.8 |
| 399803 | 3/4 | 26.5 - 27.3 |
| 399804 | 1 | 33.3 - 34.2 |
| 399805 | 1 1/4 | 42.0 - 42.9 |
| 399806 | 1 1/2 | 47.9 - 48.8 |
| 399807 | 2 | 59.7 - 60.8 |
