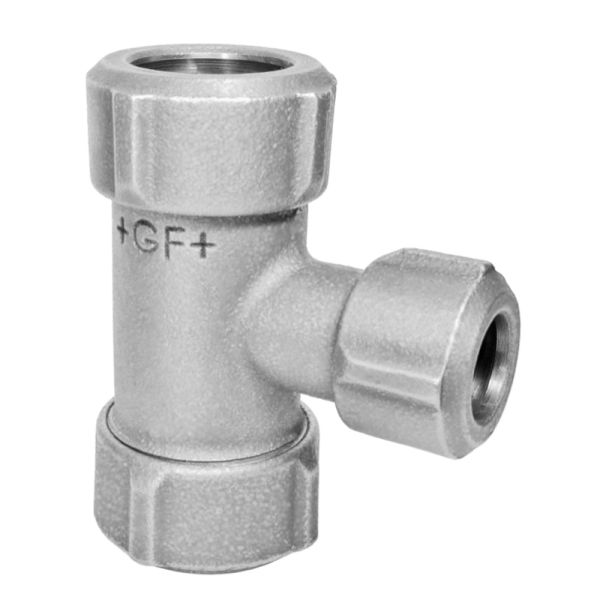

Reducing Tee 90° Steel NBR
Useful Information
These PRIMOFIT compression reducing tees have NBR gaskets and are for connection to ISO 65 Steel pipe.
| Material | Malleable Iron |
| Type | Galvanised |
| Pressure Rating | up to 16 bar - Water only |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (inch) | D (mm) | D1 (mm) | L (mm) | L1 (mm) | x (mm) | x1 (mm) | Weight (kg) |
| 399808 | 3/4 x 1/2 | 51 | 45 | 109 | 65 | 30 - 34 | 30 - 34 | 0.525 |
| 399809 | 1 x 1/2 | 59 | 45 | 111 | 69 | 30 - 34 | 30 - 34 | 0.693 |
| 399810 | 1 x 3/4 | 59 | 51 | 117 | 66 | 30 - 34 | 30 - 34 | 0.752 |
| 399811 | 1 1/4 x 1/2 | 68 | 45 | 115 | 73 | 30 - 36 | 30 - 34 | 0.817 |
| 399812 | 1 1/2 x 1/2 | 75 | 45 | 119 | 77 | 32 - 38 | 30 - 34 | 0.996 |
| 399813 | 2 x 3/4 | 96 | 51 | 138 | 83 | 36 - 42 | 30 - 34 | 1.406 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
