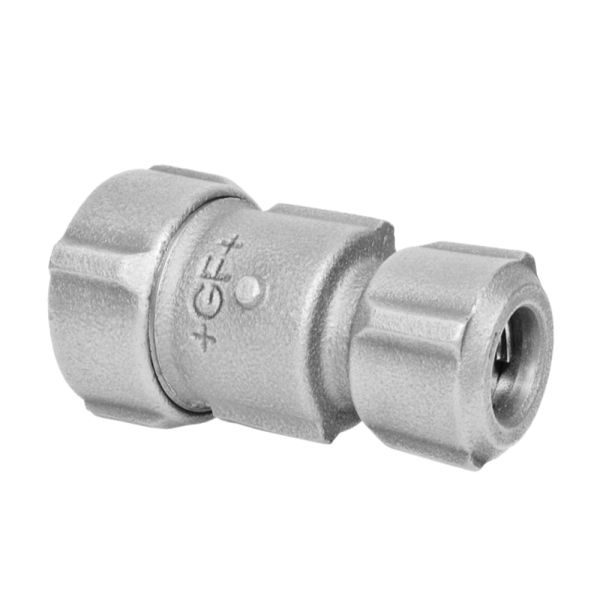

Reducing Coupling Steel x Steel NBR

Loading...
Useful Information

These PRIMOFIT compression reducing couplings have NBR gaskets and are for connection to ISO 65 steel pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Gas
up to 16 bar - Water
Operating Temperature -20°C to +80°C

GF-primofit-reducing-coupling-diagram

Product Code Dim. (inch) D (mm) D1 (mm) L (mm) x (mm) x1 (mm) Weight (kg)
399613 3/4 x 1/2 51 45 90 30 - 34 30 - 34 0.340
399614 1 x 1/2 59 45 97 30 - 34 30 - 34 0.520
399615 1 x 3/4 59 51 97 30 - 34 30 - 34 0.552
399616 1 1/4 x 3/4 68 51 99 30 - 36 30 - 34 0.460
399617 1 1/4 x 1 68 59 97 30 - 36 30 - 34 0.692
399618 1 1/2 x 1 75 59 99 32 - 38 30 - 34 0.800
399619 1 1/2 x 1 1/4 75 68 97 32 - 38 30 - 36 0.780
399620 2 x 1 1/4 96 68 109 36 - 42 30 - 36 1.280
399621 2 x 1 1/2 96 75 110 36 - 42 32 - 38 1.360

Product Code Dim. (inch) Steel Pipe Min-Max ø (mm) Reducing Dim. (mm) Steel Pipe Min-Max ø (mm)
399613 3/4 26.5 - 27.3 1/2 21.0 - 21.8
399614 1 33.3 - 34.2 1/2 21.0 - 21.8
399615 1 33.3 - 34.2 3/4 26.5 - 27.3
399616 1 1/4 42.0 - 42.9 3/4 26.5 - 27.3
399617 1 1/4 42.0 - 42.9 1 33.3 - 34.2
399618 1 1/2 47.9 - 48.8 1 33.3 - 34.2
399619 1 1/2 47.9 - 48.8 1 1/4 42.0 - 42.9
399620 2 59.7 - 60.8 1 1/4 42.0 - 42.9
399621 2 59.7 - 60.8 1 1/2 47.9 - 48.8



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399613GF PF Red. Coupling Steel x Steel Galv. NBR 3/4" x 1/2" £32.62 5%
£30.99
399614GF PF Red. Coupling Steel x Steel Galv. NBR 1" x 1/2" £52.24 5%
£49.63
399615GF PF Red. Coupling Steel x Steel Galv. NBR 1" x 3/4" £36.70 5%
£34.87
399616GF PF Red. Coupling Steel x Steel Galv. NBR 1 1/4" x 3/4" £46.41 5%
£44.09
399617GF PF Red. Coupling Steel x Steel Galv. NBR 1 1/4" x 1" £46.41 5%
£44.09
399618GF PF Red. Coupling Steel x Steel Galv. NBR 1 1/2" x 1" £55.23 5%
£52.47
399619GF PF Red. Coupling Steel x Steel Galv. NBR 1 1/2" x 1 1/4" £55.23 5%
£52.47
399620GF PF Red. Coupling Steel x Steel Galv. NBR 2" x 1 1/4" £73.72 5%
£70.03
399621GF PF Red. Coupling Steel x Steel Galv. NBR 2" x 1 1/2" £73.72 5%
£70.03
