F Adaptor Steel x Steel FPM
Useful Information

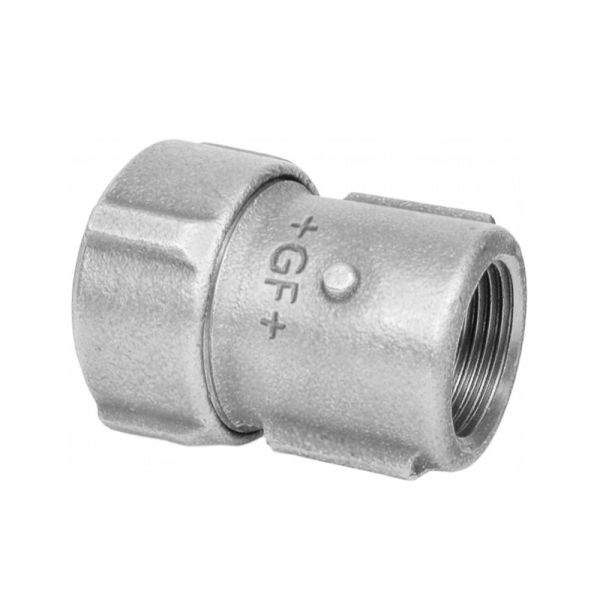

These PRIMOFIT compression female adaptors have FPM gaskets and are for connection to ISO 65 Steel pipe and Rp/EN 10226-1 threaded pipe.
Â
| Material | Malleable Iron |
| Type | Galvanised |
| Pressure Rating | up to 10 bar - Fuel up to 16 bar - Compressed Air |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. St (inch) | Dim. Rp (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399782 | 1/2 | 1/2 | 45 | 60 | 30 - 34 | 0.215 |
| 399783 | 3/4 | 3/4 | 51 | 63 | 30 - 34 | 0.292 |
| 399784 | 1 | 1 | 59 | 68 | 30 - 34 | 0.309 |
| 399785 | 1 1/4 | 1 1/4 | 68 | 72 | 30 - 36 | 0.482 |
| 399786 | 1 1/2 | 1 1/2 | 75 | 74 | 32 - 38 | 0.595 |
| 399787 | 2 | 2 | 96 | 83 | 36 - 42 | 1.108 |
| 399788 | 2 1/2 | 2 1/2 | 119 | 138 | 65 - 75 | 2.600 |
| 399789 | 3 | 3 | 132 | 148 | 65 - 75 | 3.100 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
