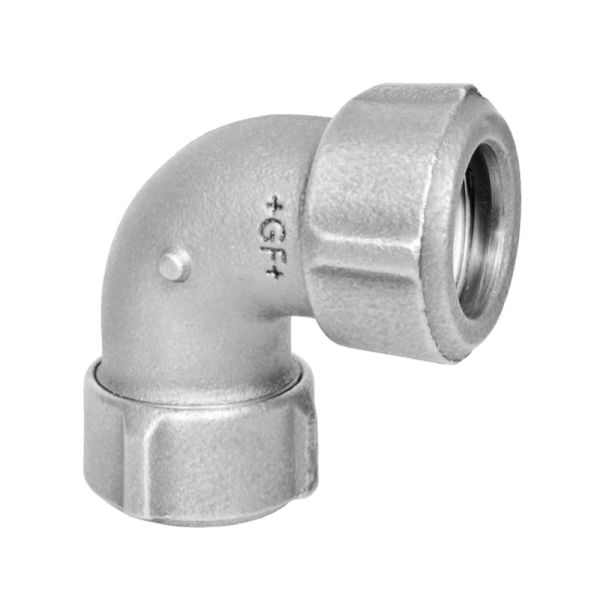

Elbow 90° Steel x PE NBR

Loading...
Useful Information

These PRIMOFIT compression elbows have NBR gaskets and are for connection to ISO 65 Steel and PE SDR 11/S 5 pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 8 bar - Gas
up to 16 bar - Water
Operating Temperature -20°C to +80°C

GF-primofit-elbow-diagram

Product Code Dim. St (inch) Dim. PE (mm) D (mm) L (mm) x (mm) x1 (mm) Weight (kg)
399881 3/4 25 x 2.3 51 59 30 - 34 31 - 33 0.460
399882 1 32 x 3.0 59 59 30 - 34 31 - 33 0.660
399883 1 1/2 50 x 4.6 75 78 32 - 38 35 - 43 1.140
399884 2 63 x 5.8 96 88 36 - 42 39 - 47 2.060

Product Code Dim. St (inch) Steel Pipe Min-Max ø (mm) Dim. PE (mm) PE Pipe Min-Max ø (mm)
399881 3/4 26.5 - 27.3 25 x 2.3 25.0 - 25.3
399882 1 33.3 - 34.2 32 x 3.0 40.0 - 40.4
399883 1 1/2 47.9 - 48.8 50 x 4.6 50.0 - 50.4
399884 2 59.7 - 60.8 63 x 5.8 63.0 - 63.4


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399881GF PF Elbow 90° Steel x PE Galv. NBR 3/4" x 25mm £48.32 5%
£45.90
399882GF PF Elbow 90° Steel x PE Galv. NBR 1" x 32mm £54.17 5%
£51.46
399883GF PF Elbow 90° Steel x PE Galv. NBR 1 1/2" x 50mm £81.67 5%
£77.59
399884GF PF Elbow 90° Steel x PE Galv. NBR 2" x 63mm £108.69 5%
£103.26
