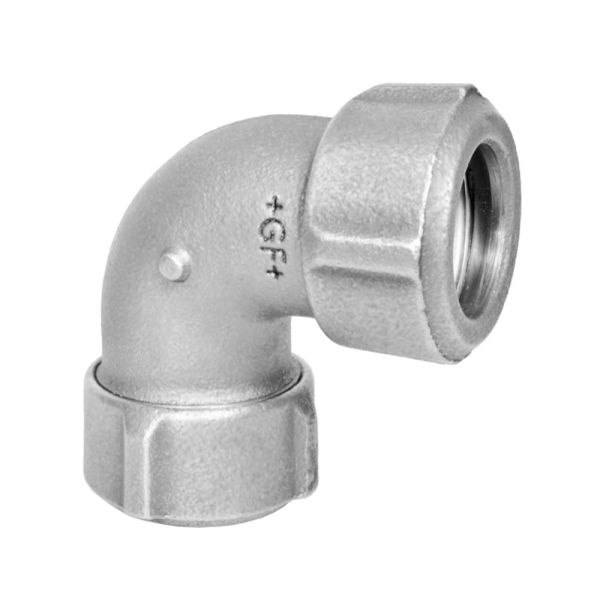

Elbow 90° Steel NBR
Useful Information
These PRIMOFIT compression elbows have NBR gaskets and are for connection to ISO 65 Steel pipe.
| Material | Malleable Iron |
| Type | Galvanised |
| Pressure Rating | up to 10 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399871 | 1/2 | 45 | 58 | 30 - 34 | 0.397 |
| 399872 | 3/4 | 51 | 60 | 30 - 34 | 0.494 |
| 399873 | 1 | 59 | 60 | 30 - 34 | 0.674 |
| 399874 | 1 1/4 | 68 | 60 | 30 - 36 | 0.820 |
| 399875 | 1 1/2 | 75 | 76 | 32 - 38 | 1.000 |
| 399876 | 2 | 96 | 88 | 36 - 42 | 1.860 |
| Product Code | Dim. (inch) | Steel Pipe Min-Max ø (mm) |
| 399871 | 1/2 | 21.0 - 21.8 |
| 399872 | 3/4 | 26.5 - 27.3 |
| 399873 | 1 | 33.3 - 34.2 |
| 399874 | 1 1/4 | 42.0 - 42.9 |
| 399875 | 1 1/2 | 47.9 - 48.8 |
| 399876 | 2 | 59.7 - 60.8 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
