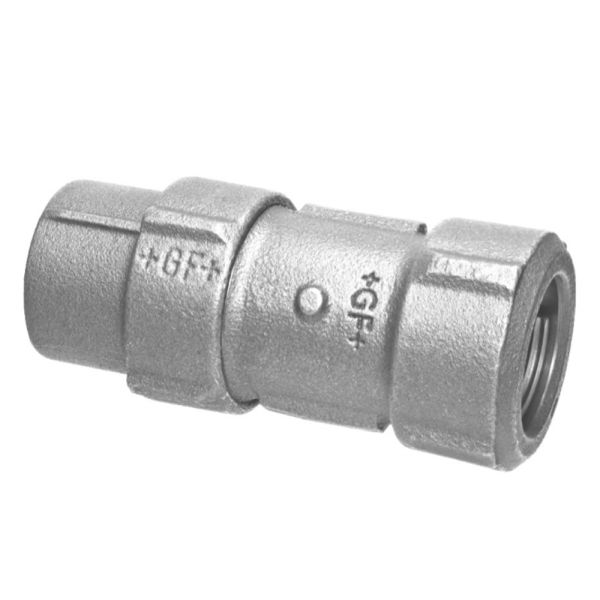

Coupling with Anti-Shear Nut Steel x PE NBR

Loading...
Useful Information

These PRIMOFIT compression couplings have anti-shear nuts and NBR gaskets and are used for the connection to ISO 65 steel pipe to PE SDR 11/S 5.



Material Malleable Iron
Colour Black
Pressure Rating up to 8 bar - Gas
up to 16 bar - Water
Operating Temperature -20°C to +80°C

GF-primofit-anti-shear-nut-coupling-diagram

Product Code Dim. ST (inch) Dim. PE (mm) D (mm) D1 (mm) L (mm) x (mm) x1 (mm) Weight (kg)
399636 3/4 20 x 2.0 51 43 108 30 - 34 45 0.431
399637 3/4 25 x 2.3 51 59 113 30 - 34 56 0.431
399638 1 20 x 2.0 59 43 115 30 - 34 45 0.500
399639 1 32 x 3.0 59 57 119 30 - 34 56 0.586
399640 1 1/4 32 x 3.0 68 57 122 30 - 36 56 0.756



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399636GF PF Coupling ASN Steel x PE Black NBR 3/4" x 20mm £41.78 5%
£39.69
399637GF PF Coupling ASN Steel x PE Black NBR 3/4" x 25mm £37.93 5%
£36.03
399638GF PF Coupling ASN Steel x PE Black NBR 1" x 20mm £46.79 5%
£44.45
399639GF PF Coupling ASN Steel x PE Black NBR 1" x 32mm £42.62 5%
£40.49
399640GF PF Coupling ASN Steel x PE Black NBR 1 1/4" x 32mm £59.13 5%
£56.17
