Useful Information

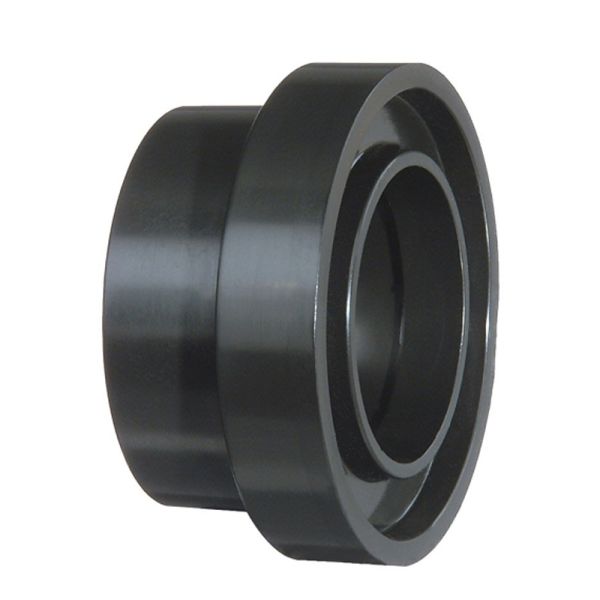

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The flanges are manufactured from polypropylene with steel core and have an O-Ring face with EPDM gasket.

Pressure Rating	10 bar
Temperature Range	-50°C to +60°C
Sizes	20mm - 110mm
Colour	Black - RAL 9005

GF-o-ring-groove-face-flange-diagram

Product Code	d (mm)	D (mm)	d1 (mm)	D1 (mm)	z (mm)	L (mm)	L1 (mm)	Weight (kg)
401977	20	27	16	34	8	22	9	0.008
401978	25	33	21	41	8	24	10	0.012
401979	32	41	28	50	8	26	10	0.019
401980	40	50	36	61	10	30	13	0.031
401981	50	61	45	73	10	33	13	0.044
401982	63	76	57	90	10	37	14	0.072
401983	75	90	69	106	10	40	15	0.112
401984	90	108	84	125	12	47	16	0.185
401985	110	131	100	150	13	55	18	0.285

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401977	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 20mm	£7.59	20%	£6.07
401978	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 25mm	£8.35	20%	£6.68
401979	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 32mm	£9.19	20%	£7.35
401980	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 40mm	£11.82	20%	£9.46
401981	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 50mm	£13.75	20%	£11.00
401982	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 63mm	£17.16	20%	£13.73
401983	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 75mm	£34.78	20%	£27.82
401984	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 90mm	£53.55	20%	£42.84
401985	GF ecoFIT SF PE Stub Flange Grooved 10 Bar 110mm	£79.95	20%	£63.96
