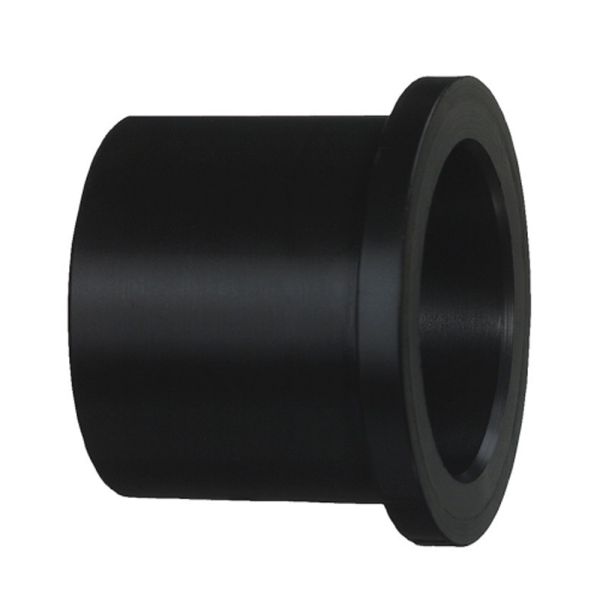

Georg Fischer ecoFIT SF Outlet Flange
Useful Information
These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
The outlet flanges have a socket fusion metric end and are suitable for installation to the outlet side of the Type 369 wafer check valves.
| Pressure Rating | 6 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 40mm - 110mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | D (mm) | D1 (mm) | z (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 401971 | 40 | 50 | 78 | 35 | 55 | 11 | 0.065 |
| 401972 | 50 | 61 | 88 | 38 | 61 | 12 | 0.088 |
| 401973 | 63 | 76 | 102 | 41 | 69 | 14 | 0.136 |
| 401974 | 75 | 90 | 122 | 49 | 79 | 16 | 0.223 |
| 401975 | 90 | 107 | 138 | 65 | 100 | 17 | 0.357 |
| 401976 | 110 | 130 | 158 | 62 | 105 | 18 | 0.482 |
