Georg Fischer ecoFIT SF Union End

Skip to the beginning of the images gallery

Useful Information

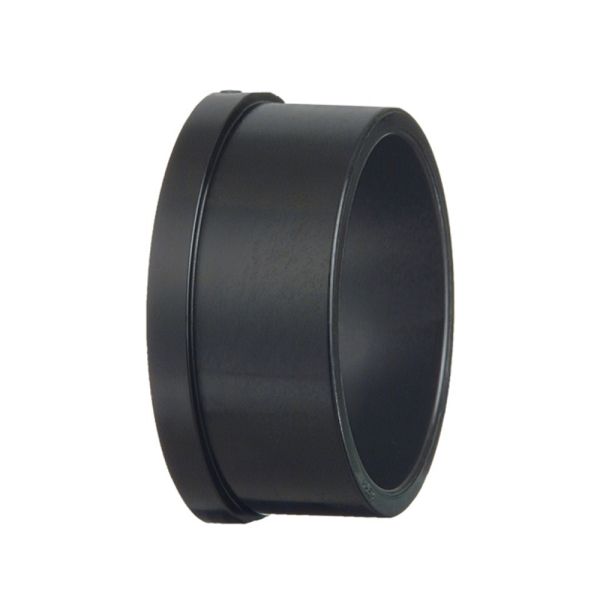

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar
Temperature Range	-50°C to +60°C
Sizes	20mm - 63mm
Colour	Black - RAL 9005

GF-union-end-diagram

Product Code	d (mm)	z (mm)	D (mm)	D1 (mm)	L (mm)	Weight (kg)
402033	20	5	30	28	5	0.006
402034	25	5	39	36	5	0.013
402035	32	5	45	42	6	0.015
402036	40	5	57	53	6	0.026
402037	50	5	63	59	7	0.027
402038	63	5	79	74	8	0.044

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
402033	GF ecoFIT SF PE Union End 10 Bar 20mm	£6.43	20%	£5.14
402034	GF ecoFIT SF PE Union End 10 Bar 25mm	£7.30	20%	£5.84
402035	GF ecoFIT SF PE Union End 10 Bar 32mm	£8.35	20%	£6.68
402036	GF ecoFIT SF PE Union End 10 Bar 40mm	£10.88	20%	£8.70
402037	GF ecoFIT SF PE Union End 10 Bar 50mm	£12.40	20%	£9.92
402038	GF ecoFIT SF PE Union End 10 Bar 63mm	£14.02	20%	£11.22
